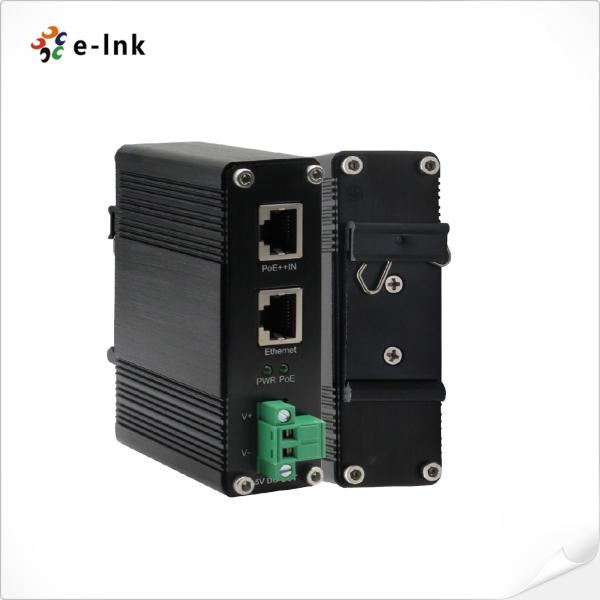

Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output
Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output
Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output
Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output
Specifications
Brand Name :
E-link
Model Number :
LNK-INS901-5V
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Splitter Standard Export Package
Keywords :
Ethernet Splitter PoE
PoE Standard :
802.3af/at/bt Power over Ethernet
Optical Port :
20W 5VDC
Power Consumption :
25W Max
Casing :
IP40 Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial 10 100 1000Mbps Gigabit 802.3bt PoE Splitter Output Voltage 5VDC
5V Power Over Ethernet Splitter Advantages

► One 5VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at/bt PoE++

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Interface: “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 2-Pin terminal block
Power over Ethernet
PoE Standard: IEEE 802.3af/at/bt Power over Ethernet
Number of devices that can be powered:

1 (5VDC)

(Vary on device’s power requirement; cannot be over 36 watts.)
LED Indicators:
PWR: 5VDC Power OUT
POE: PoE Power IN
Weight: 0.25Kg

Overview

The LNK-INS901-5V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 5VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS901-5V, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.

Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output

Industrial Gigabit 10 100 1000Mbps 802.3 Bt Din Rail PoE Splitter 5V 20W Output

Ordering Information

Model Description
LNK-INS901-5V Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
