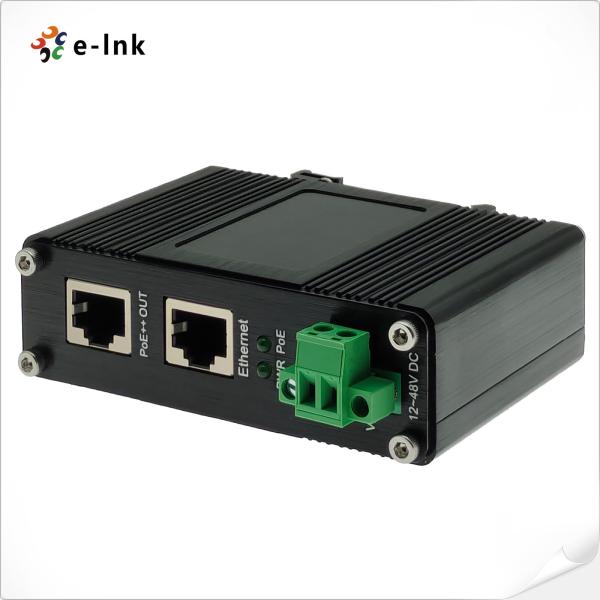

Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ301-90
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-6working days
Packaging Details :
PoE Injector Adapter standard export package
Price :
Negotiated
Maximum Distance :
Cat5 UTP up to 100m
Data Rate :
10/100/1000Mbps
Dimension :
90 x 60 x 30mm
Output Power :
24W
Output Voltage :
48V DC
Weight :
150g
Description
Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 95W 802.3bt PoE++ Injector

Industrial 95W 802.3bt PoE++ Injector ​Advantage

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp

Overview

The LNK-INJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++

95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to

connect the PoE device such as camera and access point with a non PoE LAN switch within the distance

of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000

Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Technical Indexes

Ethernet
Standards:

IEEE802.3 10 BASE-T Ethernet

IEEE802.3u 100 BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 100W Max.
Power over Ethernet:
Standard: IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)

Application

Industrial 95W 802.3bt PoE++ Injector (12~48VDC, 2x RJ45)

Ordering Information

Model Description
LNK-INJ301-90

Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output

Injector with 12~48V DC wide range power input
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
