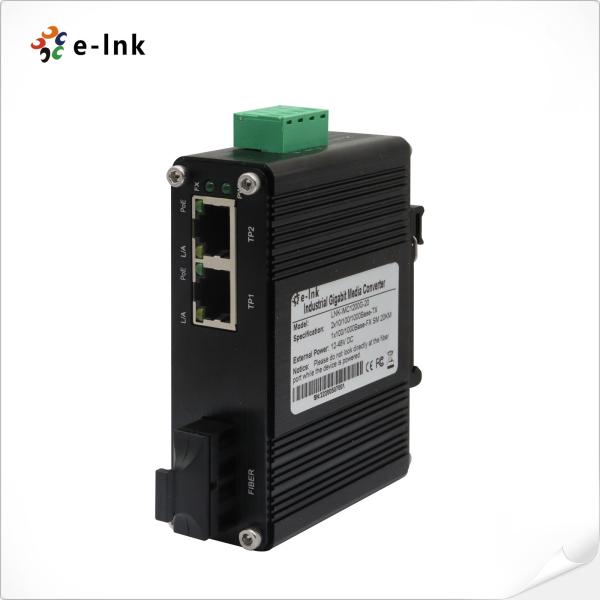

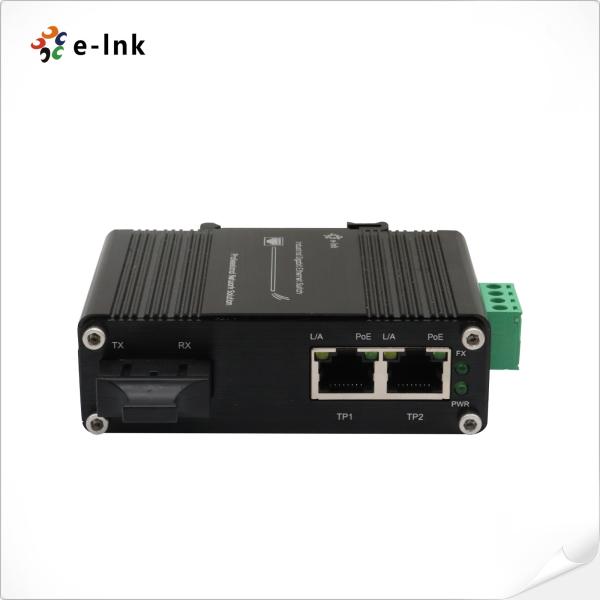

2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP60 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
US$90-105/pc
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Connector :
2x RJ45
Optical Port :
1 x 1000Base-X SC
Input Power :
48~57VDC, 2-pin terminal block
Power Consumption :
125W Max.
Output Power :
48VDC
Mounting Options :
DIN-Rail / Wall-mount
Description

Fiber Media Converter 60W 2xPOE Ports Industrial Gigabit Ethernet 10/100/1000M​

​Fiber Media Converter Advantages

  • 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1-Port 1000Base-X SC
  • IEEE802.3af/at compliant
  • Up to 60W of power over 4-pairs

Specifications

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

125W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

2 POE Port Fiber Media Converter For Industrial Gigabit Ethernet 10/100/1000M

Order Information

Model Description
LNK-IMC1200GP60 Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200GP60-20 Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200GP60S-20 Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
