Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-SDI-4V
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pairs/month
Delivery Time :
5-12 working days
Packaging Details :
SDI Fiber Converter Standard Export Package
Keyword :
HD-SDI to fiber converter
BNC Connector :
FC/PC（SC/PC optional）
Input number :
4 Channel BNC
Optics Channel :
1 Channel
Data :
Max 57600bps for RS485
Operating Temperature :
-10℃～＋55℃
Description

Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter

HD-SDI Fiber Extender Advantages

► 4 channel HD-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Directly compatible with HD-SDI camera systems and support 4Ch Loop output
► Long transmission capability at least 10 km (6.2miles) , up to 100 km

Technical Indexes

Serial TV, BNC Input

270Mbit/s - 1.48Gbit/s

Input number: 4

Equilibrium: 0-150m @1.485Gb/s

Optics

Channel: 1

Type: single-mode

Wavelength: 1310nm /1550nm

Transmission distance (550m-100Km)

Serial TV, BNC output (EO/OE)

Output number:4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Analog audio

Input/ output impedance: 600Ω equilibrium

Max. input/output level: +15 dBu

Power and environmental indication

Operating temperature: -40℃～＋75℃

Pressure: 1A@12VDC

Power: 12 W

SDI video format supports

625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30; 1080i 23/24/30;

Overview

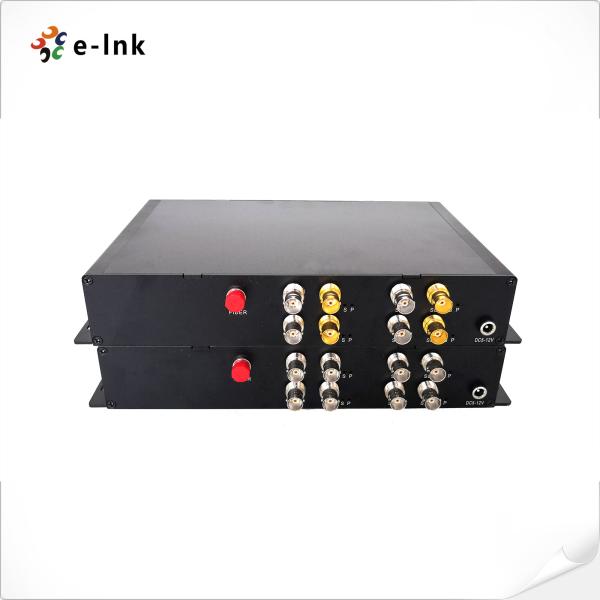

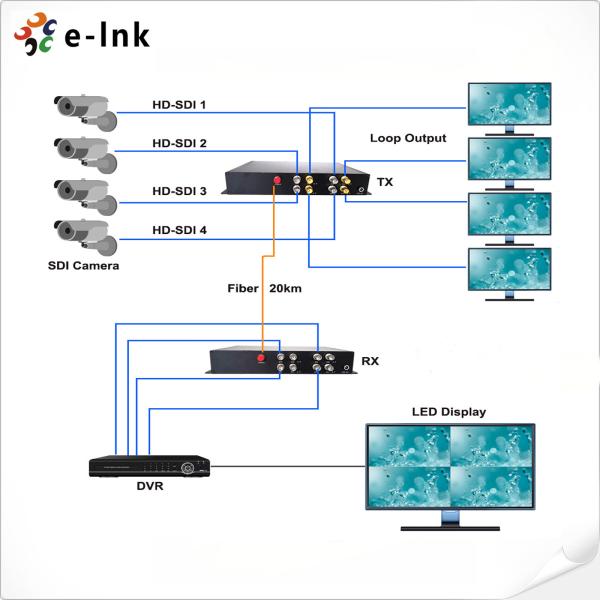

LNK-SDI-4V Series supports 4-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can transmit 4-Ch HD-SDI Video signal through a single optical fiber. The video quality is up to broadcast standard.
Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter

Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
Ordering Information

LNK-SDI-4V

4-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-SDI-4V1R

4-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-SDI-4V1A

4-Ch SDI Video + 1-Ch Forward Audio, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs
