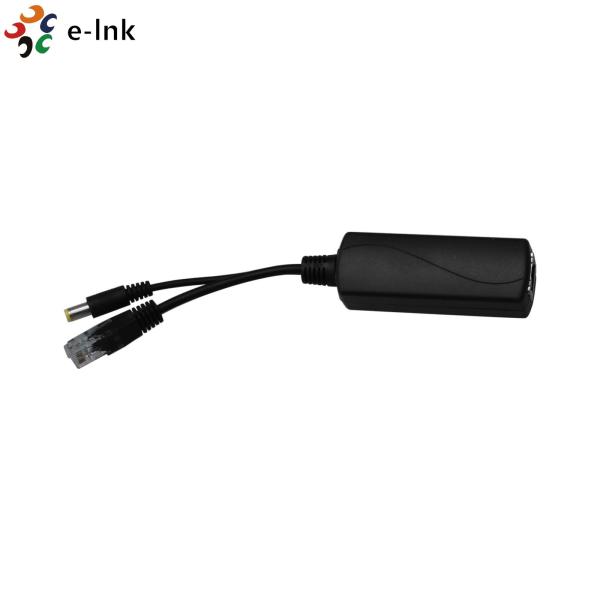

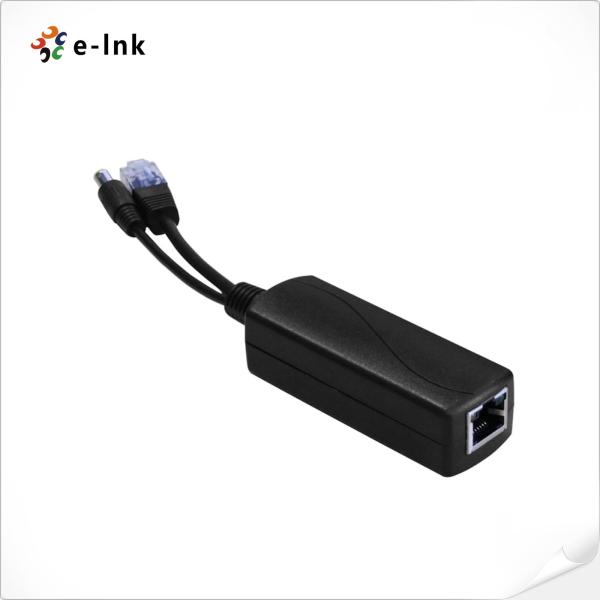

PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output
Specifications
Brand Name :
E-link
Model Number :
LNK-SP24W
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Power Splitter Standard Export Package
Keyword :
PoE Power Splitter 24VDC
Data Rate :
10/100Mbps
Power Input :
16～55V DC
Input Interface :
DC Jack
Transmission Distance :
150 meters
Color :
Black Or White Optional
Weight :
200g
Description

PoE Power Splitter 10/100M POE Input + Network + DC Output 24V 1A PoE Splitter
PoE Splitter 10/100M Advantages

► Comply to IEEE802.3af/at

► Power Input:DC16～55V

► 52V: MAX transmission 150M (With full copper low resistance network lines)

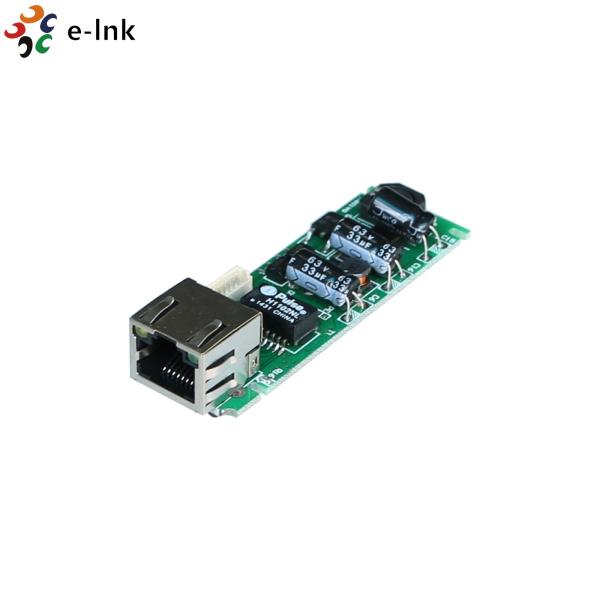

► Built-in high performance chip and high specification circuit board

► Stable:AKros AS1138, with lightning protection

Enterprise PoE Splitter Technical Indexes

Power

25W

distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

Port

1 FE(10/100M) POE input+1 Network+1 DC output

POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network

protocol

IEEE 802.3i 10BASET；

IEEE 802.3u 100BASETX；

IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°～55°C

Storage temperature:-40°～85°C

Working Humidity: 10%～90% RH non-condensing

Storage Humidity: 5%～90% RH non-condensing

Radiation

CE mark,commercial,FCC Part 15 Class B,RoHS

24V PoE Splitter 802.3at Overview

LNK-SP24W Commercial PoE splitter, Develop used for Ethernet power supply application scenarios, device doesn't support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at” PoE power supply; output 24VDC 1A; The PoE signal can be separated into network signal and electric power. PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output

PoE Power Splitter 10/100Mbps IEEE802.3af/at 24VDC 1A Output

PoE Power Splitter 30W Ordering Information

Model

Description

LNK-SP24W

PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
