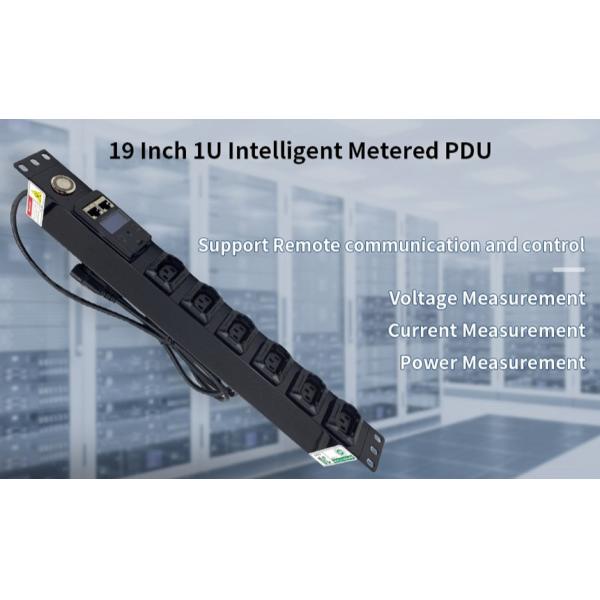

Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU
Specifications
Brand Name :
E-link
Model Number :
LNK- IPDU_M6
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PDU Power Distrbution Unit Standard Export Package
Keyword :
Rack mount Surge Protection PDU
Phase line :
Single Phase
PDU Input Voltage :
85-265V AC
Output Capacity Details :
3.68kW (230V), 1.76kW(110V)
Unit Weight :
1.05kg / 2.31 lbs
Warranty Period :
5-year limited warranty
Description

PDU Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU

Smart Power Distrbution Unit Advantages

► Support Remote communication and control

► With Power meter, OLED display

► Gen 3 10KA Surge Protection module

► L and N Double-break Switch

► UL94V-0 Grade Flame Resistant Material

Technical Indexes

OUTPUT
PDU type 19 inch rack mount Surge Protection PDU with Smart Power meter
Overload Protection Yes
Voltage Measurement Range: 0~300V
Display Digits: 0.01V
Current Measurement Input: Transformer
Range: 0~30mA
Display Digits: 0.01A
Power Measurement Accuracy: Grade 1
Display Digits: 0.01kW
Electricity Measurement Accuracy: Grade 1
Display Digits: 0.01kW
Display OLED Screen, Blue text on black / White text on black
INPUT
PDU Input Voltage 85-265V AC
Maximum Input Amps 10/16A
PDU Plug Type US, EU, UK, IEC 3 Pin available
Input Cord Details 1.8m / 5.9ft
ENVIRONMENTAL
Operating Temperature -10 to 50°C
Storage Temperature -30 to 60°C
Operating Elevation 0-4000m

Overview

E-link's IPDU_M serise Rack Power Distribution Unit (PDU) distributes power to devices in the 19’’ rack. The PDU with 6 outlets and build-in surge protector. Universal 10/16A 100–240V PDU is compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. With smart power meter, support Remote communication and control and display the voltage, current and Power on OLED screen. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.

Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU

Power Distribution Unit 19 Inch 1U 6 Port Intelligent Remote Controlled Metered PDU

Ordering Information

Model

Number

 Installation specification

Input

Cable

 Input Output Output Interface
Control
LNK- IPDU_M6GB10_ZK_GB Horizontal 19’’ 1U 1.8m

85-265V

AC

 GB2015, Max=13A, 6CH Control output GB1002(10A/250V)
LNK- IPDU_M6IEC13K_ZK_IEC14

Horizontal

 19’’ 1U 1.8m

85-265V

AC

 IEC320-C1 (Cable anti falling), Max=13A, 6CH Control output IEC60320 C13
LNK- IPDU_M6WY10_ZK_GB

Horizontal

 19’’ 1U 1.8m

85-265V

AC

 Universal plug Max=16A, 6CH Control output GB 2099.3(16A/250V)
LNK- IPDU_M6UL_ ZK_UL

Horizontal

 19’’ 1U 1.8m

85-265V

AC

 Universal plug Max=16A, 6CH Control output NEMA5-15R(16A/250V)
