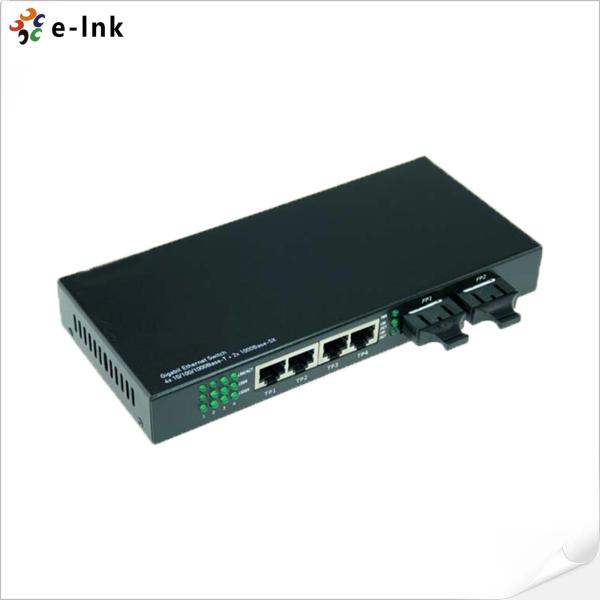

Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX
Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX
Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX
Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX
Specifications
Brand Name :
E-link
Model Number :
LNK-2400G
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
5-12 working days
Packaging Details :
Ethernet Switch Standard Export Package
Keyword :
6 ports ethernet switch
Power supply :
DC5V 3A (external)
Access mode :
10/100/1000Mbps
Wavelength :
850nm/1310nm/1550nm
Operating temperature :
-10~55ºC
MTBF :
100,000 hours
Description

Ethernet Switch 10/100/1000M Media Converter 2-TX + 2-FX SFP Port Fiber Switch

Ethernet Switch Hub Advantages

► Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)

► Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

► 1000M Fiber port supports 1000M and Full Duplex mode.

► Supports flow control and broadcast storm protection.

Technical Indexes

Standard

IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX

Transmission distance

Fiber Optic:

Multimode Fiber:50/125,62.5/125μm

Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)

Category-5 twisted pairs: 100m

Port

4*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs

2*SC socket

Conversion means

Media conversion, store-and-forward

Flow control

Full duplex: flow control; half duplex: back pressure

Error rate

<10-9

MTBF

100,000 hours

MAC address table

1K

Power consumption

4W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Overview

LNK-2400G is 4 port Gigabit Ethernet Switch with four 10/100/1000M UTP ports and two 1000M SC sockets, which converting the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX

Din Rail SC SFP Fiber Optic Media Converter Switch 10/100/1000M 4-TX

Ordering Information

Item

Description

LNK-2400G

10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, Multi-mode, 550m, 1310nm, SC, standalone, external power adaptor

LNK-2400GS-20

10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor

LNK-2400G-20

10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
