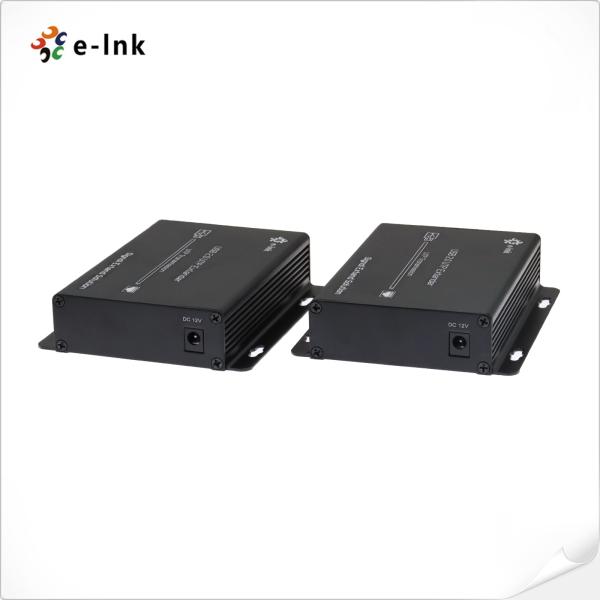

4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-U4T1-2.0
Certification :
ISO9001,CE,ROHS,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-5 working days
Packaging Details :
Fiber Optic Accessories Standard Package
Connector :
RJ45
Max. Distance :
Cat5 cable: 100 meter, Cat6 cable: 170 meter
Voltage :
5- 12V DC
Storage temperature :
-40~85℃
Humidity :
0-95% (non-condensing)
Size (L× W ×H) :
117mm x104mm x28mm
Description

4-Port USB 2.0 Over CAT5/CAT6 Extender for Reliable Data Transmission

Model:LNK-U4T1-2.0

Overview

This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the

extension of USB signal more than 100 Meter through the network cable. The device can be widely used

in military command and control system, police command and control system, traffic management system,

energy and electricity supply industry, government office, medical system, commercial presentation,

multimedia and public utilities etc.

Features

► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

► Support USB-HUB expansion, support all kinds of USB devices;

► No Drivers Required, compatible with all operating systems;

► Support hot-swappable, plug and play;

► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.

Technical Indexes

UTP Connector RJ45
Max. Distance Cat5 cable: 100 meter, Cat6 cable: 170 meter
USB2.0

Input / Output

 USB2.0 Type-A

Physical

 Size (L× W ×H) 117mm x104mm x28mm
Case Aluminum

Color

 Black
N.W . 0.75Kg
Power Voltage 5- 12V DC

Power consumption

 <5W

Environment

 Working temperature -20℃~70℃
Storage temperature -40~85℃

Humidity

 0-95% (non-condensing)

Application

4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission

Ordering Information

Part No Description of product
LNK-U4T1-2.0 4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable
