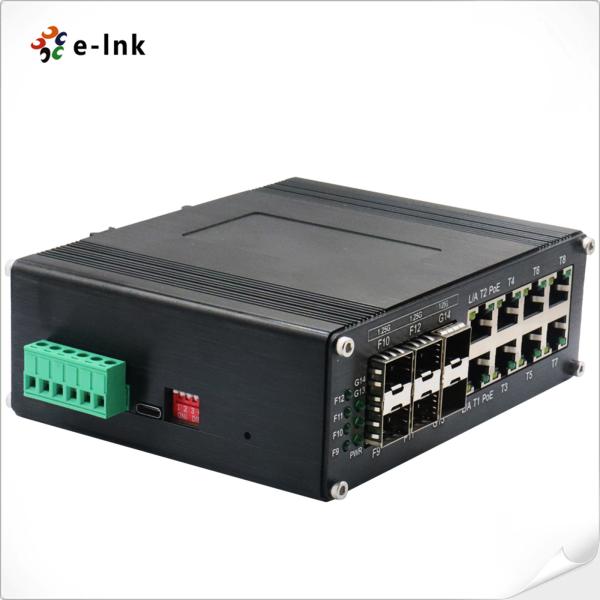

Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP
Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP
Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP
Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP
Specifications
Brand Name :
E-link
Model Number :
ETH-IMC608MP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Ethernet Switch Standard Export Package
Keywords :
Industrial Managed PoE Switch
Ethernet Port :
8 x RJ45
Optical Port :
6 x 1000Base-X SFP
Input Power :
48~57VDC
Power Pin :
4/5(+), 7/8(-)
Weight: :
0.55Kg
Description

Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP

Industrial Managed PoE Switch Advantages

► Support 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Managed PoE Switch Technical Indexes

Interface
Connector: 8 x RJ45
RS485: 1 x RS485 (Optional)
Optical Port: 6 x 1000Base-X SFP
USB-C: 1 x USB-C (for Management)
PoE (Power over Ethernet)
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 240-watt PoE budget
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Electrical and Mechanical
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.(PoE in Use<240W)
Protection:
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 149 x 114 x 50 mm
Weight: 0.55Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail mount

Overview

ETH-IMC608MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened

Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half

duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode

fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network

devices such as IP cameras and wireless access points between remote locations.

Application

Industrial Managed PoE Switch 8-Port 10/100/1000T + 6-Port 1000X SFP

Ordering Information

Model Description
ETH-IMC608MP Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Managed Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
