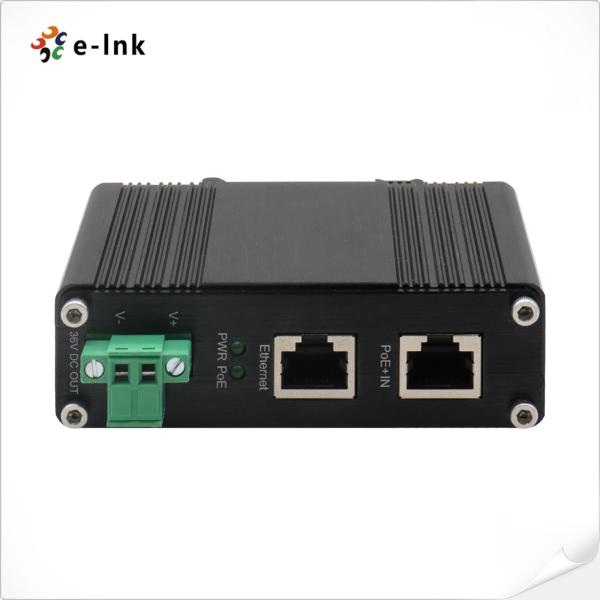

Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Specifications
Brand Name :
E-link
Model Number :
LNK-INS301-36V
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Power Splitter Standard Export Package
Keywords :
PoE Power Splitter
Output Voltage :
20W 36VDC
PoE Standard :
802.3af/at Power over Ethernet
Distance :
Up to 100 meters
Casing :
IP40 Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 36VDC

PoE Power Splitter Advantages

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

Technical Indexes

Ethernet
Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Interface: “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 2-Pin terminal block
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview
The LNK-INS301-36V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors.This device saves the high cost of running separate electrical service to edge devices.

Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC
Industrial Wall Mount 802.3at PoE Power Splitter Output Voltage 36VDC


Ordering Information

Model Description
LNK-INS301-36V Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 20W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
