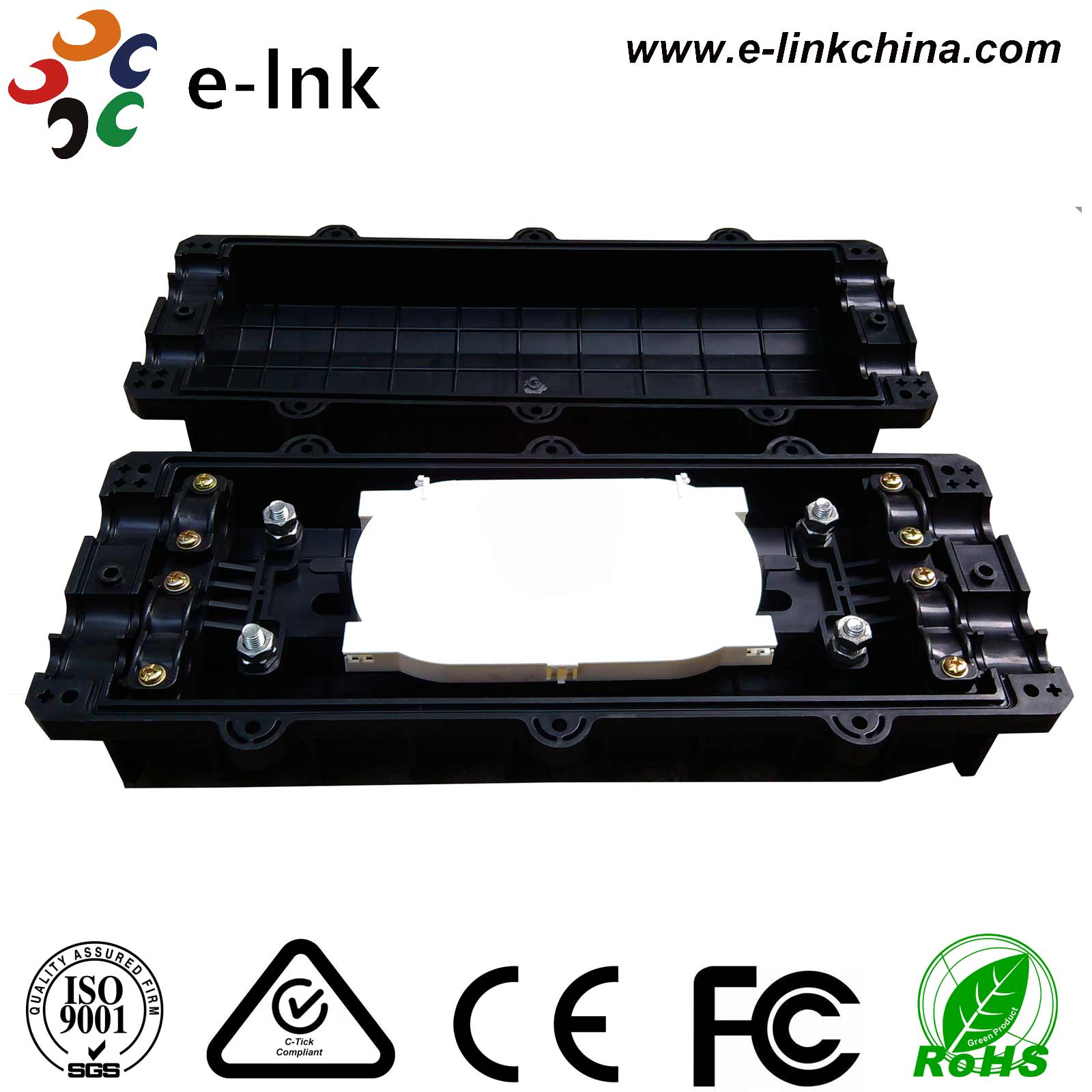

Horizontal Type Fiber Splice Enclosure (3 fiber cables in-out ports)

Fiber Optic Accessories Advantages:

  • All property indexes are in accordance with National YD/T814-1996 Standard.
  • The case body is made from imported high-intensity engineering plastics(ABS)
  • and formed the shape with mould plastics under high pressure. It is in the shape
  • of HALF rectangle, with the advantages of less weight, high mechanical intensity,
  • corrosive-resistance, anti-thunderstruck and long service life.
  • The case body and cable entrance are sealed with adhesive rubber strip
  • (non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened
  • and easy to maintain.
  • unique disposition of 4 different cable loops(φ12.5,φ17,φ20,φ22) enables user
  • to choose different outer diameter according to actual conditions, It enhances the
  • reliability of the cable entrance sealed.
  • overlapping fiber-melting tray and separate insulation earth unit make the disposition
  • of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
  • outer metal component and fixing unit are made of stainless steel, so can be repeatedly
  • used in different environments.

Horizontal Type Fiber Splice Enclosure (3 fiber cables in-out ports)

Overview

The LNK-FE02H Closure allows 3-cable in and 3-cable out. The closure casing is made of

quality engineering plastics, and of good performance of anti-erosion against acid and alkali

salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The

mechanical structure is reliable and has the performance of resisting wild environment

and intensive climate changes and serious working environment. The protection grade

reaches IP68. The closures are applicable to ribbon type optical cable and common

optical cable. The splice trays inside the closure are turn-able like booklets, and have

adequate curvature radius and space for winding optical fiber to make sure the curvature

radius for optical winding 40mm. Each optical cable and fiber can be operated individually.

The elastic rubber seal rings inside the closure are of good sealing and sweat-proof

performance. The casing can be opened repeatedly without air leakage. No special tools

are required. The operation is easy and simple. The air valve is provided for the closure

and used to check the sealing performance.

Application

The product can be applied in the straight line and branch line(one into two, one into three)

connections of optical cables within the diameter of 22mm(φ), all types and structures, when laid

overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the

connection of all-plastic city phone cables.

Technical Parameters

Item LNK-FE03H
External Size (length×width×height) 420 × 150× 110mm
Cables Entry & Exit 3 & 3
Weight 1.3KG
Optical fiber winding radius ≥40mm
Extra loss of fiber tray ≤0.01dB
Fiber length left in tray ≥1.6m
Max Capacity of Cores Single Fiber Type: 96
Max Capacity of Cores Tape-shaped Type: 192
Working temperature - 40℃ ~ + 70℃
Lateral pressure-resistance ≥2000N / 10cm
Waterproof and dustproof IP68
Shock-resistance ≥20N.m

Packing List

1 joint case main body 1 piece
2 fiber-melting tray 1 piece
3 frame
4 Melted fiber pack melting pipe housing 12stick
stainless reinforced core stick stick
label “1-48”
nylon tie 5 stick
sand paper 1strip
5 stainless steel accessories M5×30 bolt and nut 2sets
Hitcher 2 pcs
M8×25 stainless steel bolt 8pcs
M8×35 stainless bolt 2pcs
6mm inside hexagon spanner 1pc
6 Plastics accessories kit Block 2pcs
cable loop φ12.5 8pcs
cable loop φ17 8pcs
cable loop φ20 8pcs
cable loop φ22 8pcs
7 adhesive tape 1coil
8 sealed strip unit 1piece

Ordering Information

Item Description
LNK-FE03H-48 Horizontal Type Outdoor Fiber Enclosure IP68 for up to 48 cores(12 Cores/Tray x 4 Trays) , 3-cable-in and 3-cable-out, including 6 splicing Cassettes and Heat shrink and all accessories
LNK-FE03H-96 Horizontal Type Outdoor Fiber Enclosure IP68 for up to 96 cores(12 Cores/Tray x 8 Trays) , 3-cable-in and 3-cable-out, including 6 splicing Cassettes and Heat shrink and all accessories

Transportation and Storage

(1) The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of

rain & snow and insolation.

(2) Keep the product in a draughty and dry store, without corrosive gas in.

(3) Storage Temperature Range: -40℃ ~ +60℃
