Specifications
Brand Name :
E-link 4K HDMI
Model Number :
LNK-106M
Certification :
ISO9001 / CE / RoHS / FCC
Place of Origin :
China
MOQ :
1pair
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
1-3working days
Packaging Details :
HDMI Fiber EXtender Standard Carton Packaging
Video Support :
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support :
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Weight :
0.1 kg / 0.22 lb
Wavelength :
850nm/1310nm/1550nm
Operating Temperature :
0°C to + 50°C

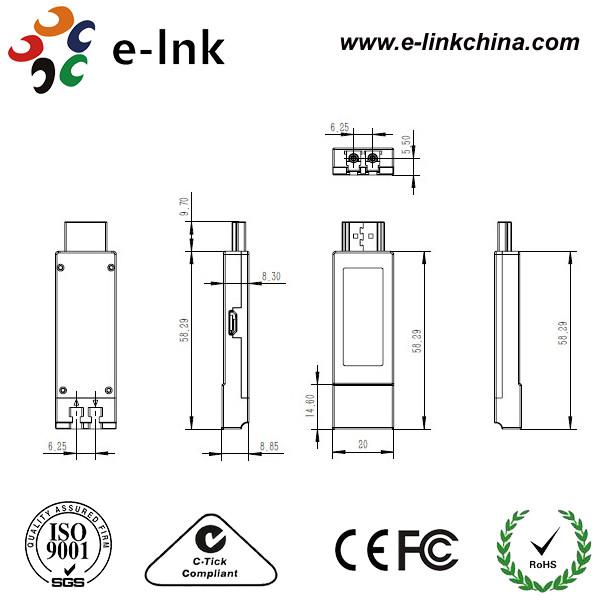

Dimensions (WxDxH) :
3.15 x 0.79 x 0.35 in (80x20x9mm)
Description

Mini 4K HDMI Optical Transceiver Supports All Modes up to 4K*2K

@30Hz Resolution

HDMI Fiber Extender Advantages:

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

► Supports All Modes up to 4K*2K@30Hz Resolution

► Standard HDMI Connector

► Integrated USB Connector for Power

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photodetector

► Video over (2) multimode fibers

► Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)

► Operating Case Temperature: 0~70°

Overview

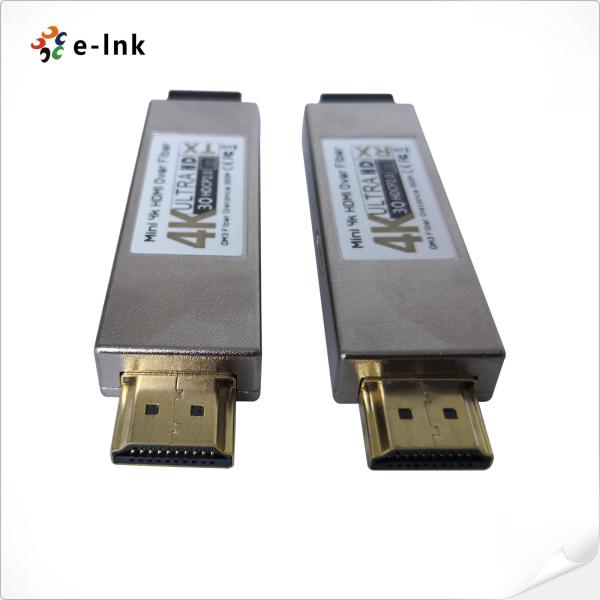

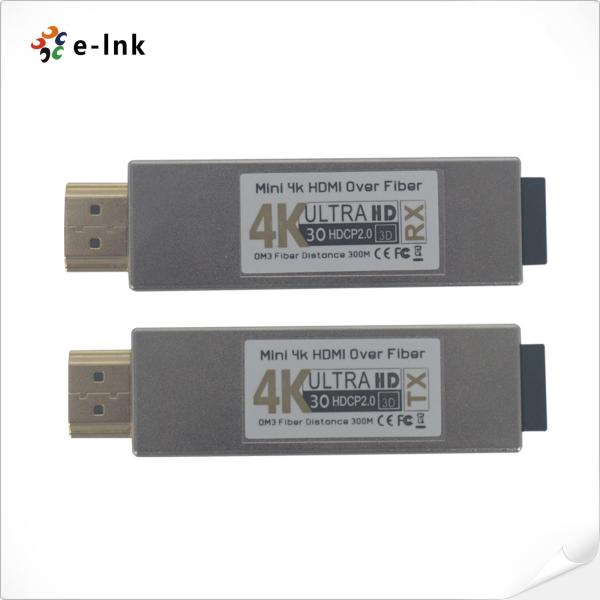

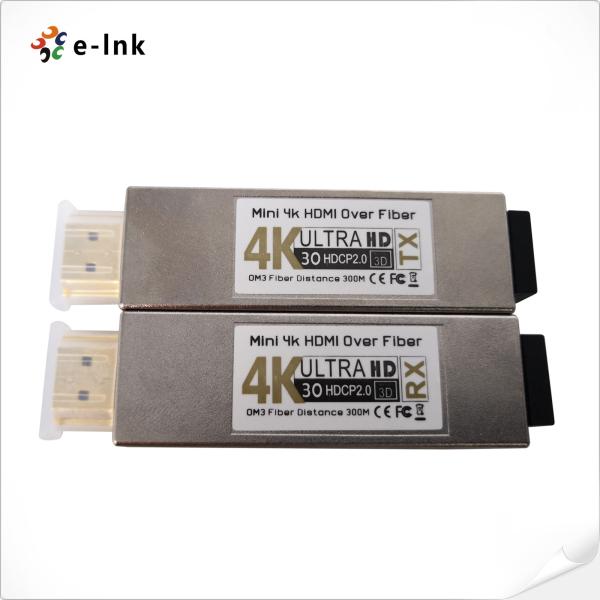

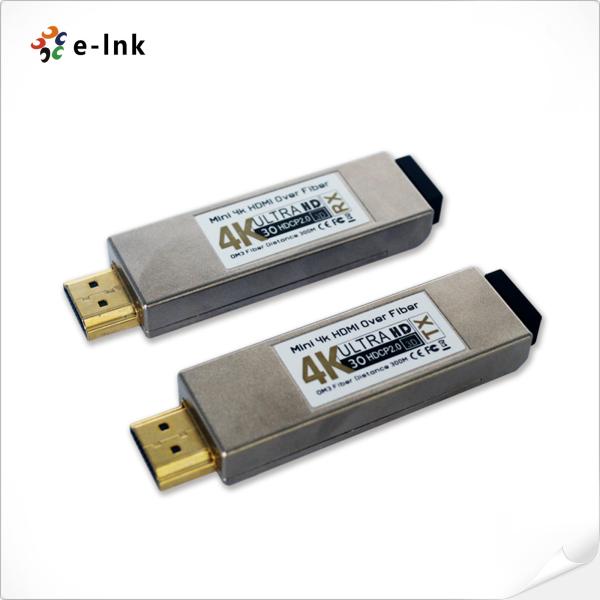

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission

of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances

of 300m, at a resolution of 4Kx2K. 4 K HDMI OPTICAL TRANSCEIVER -T converts an HDMI signal to

a single 10Gb/s serial data stream for transmission over two optical fibers. 4 K HDMI OPTICAL

TRANSCEIVER -R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant

and lead-free per requirements in Europe and China. This product is ideal for large-screen display,

conferencing systems and home entertainment and so on. The device has the ability of anti-interference,

to ensure the stability of the signal.

Application

Mini 4K HDMI Optical Transceiver Supports All Modes up to 4K*2K@30Hz Resolution

Technical Indexs

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Signal Support HDMI 1.4a HDMI format standard and HDCP compliant
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications Color space 444, 420, 400
Dynamic EDID Plug & Play, no need to learn

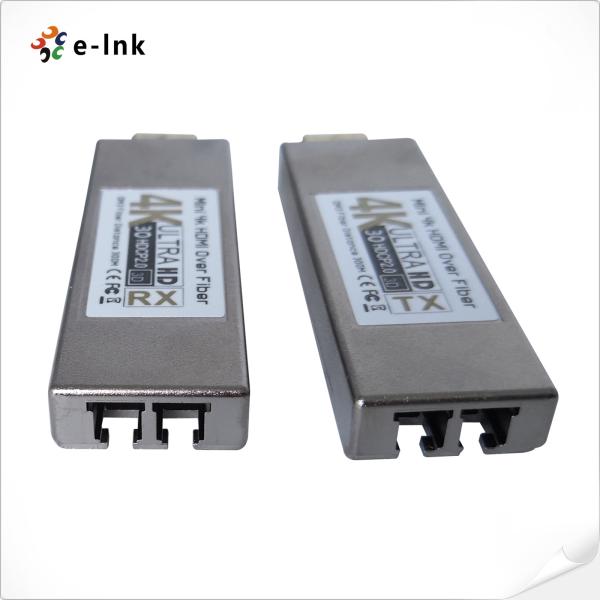

Fiber Connector Double LC Receptacle
Transmission Distance Multi Mode, up to 984ft (300M)
Operating Temperature 0°C to + 50°C
Storage Temperature -20°C to + 85°C
Humidity to 90% RH (non-condensing)
Safety Approvals CE, RoHS, FCC
Dimension (WxDxH) 3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight 0.1 kg / 0.22 lb
Operation Voltage 5VDC
Power Supply Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Orrdering Information

Item Description
LNK-106M Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
