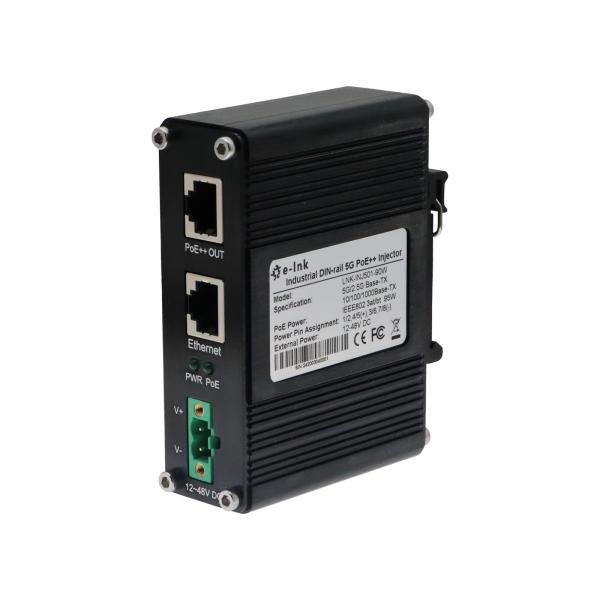

Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Specifications
Brand Name :
E-link
Model Number :
The LNK-INJ501-90
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
PoE Injector Adapter Standard Export Package
Key Word :
PoE Injector Adapter
Input Power :
12~48VDC (Terminal Block)
Dimensions (WxDxH） :
95 x 70 x 30 mm
Weight :
0.25Kg
Mounting Options :
DIN-Rail / Wall-mount
Casing :
IP40 Aluminum Case
Description

PoE Injector Adapter Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

Technical Indexes

Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 100W Max.
Power over Ethernet:
Standard: IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)

Overview

The LNK-INJ501-90 product is an Industrial hardened single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G/5G

Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera

and access point with a non PoE LAN switch within the distance of 30m.

Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)

Ordering Information

Model Description
LNK-INJ501-90 5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC power input
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
