Specifications
Brand Name :
E-link
Model Number :
LNK-POE2GP
Certification :
ISO9001 / CE / RoHS / FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
1-3working days
Packaging Details :
Fiber Optic Accessories Standard Carton Packaging
Maximum Output Current :
1A
Ethernet Data Rate :
10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Power supply :
9 to 48VDC +/- 5%, Maximum 56VDC
Operating temperature :
0°C to 45°C (-32°F to 113°F)
Dimensions (LxWxH :
Length = 8 inches (20.3 cm)
Humidity storage :
5% ~ 90% (non condensing)
Description

Gigabit Passive Poe Injector and Splitter Kit Includes Passive Injector & Splitter Sides

Fiber Optic Accessories Advantages:

► 9~48V input. Plug Play, no configuration.

► IEEE 802.3at/at compliant.

► Includes Passive Injector & Splitter Sides

► Works with all DC powered non-PoE devices

► Support10/100/1000M BASE-TX.

► Ethernet Cable Data rate: 10/100/1000Mbps.

► Input Voltage: 9V~ 48V.

► Power Jack: 2.1x5mm male.

► Power Plug: DC 2.1X5.5mm female.

► Easy to install PoE Application for AP, CPE, IP Camera, IP Phone

► Use the Power Supply from Powered Device

► Works up to 150 feet (depending on cable used and power draw of device)

Overview

This LNK-POE2GP passive power-over-Ethernet (PoE) gigabit splitter and injector device are compliant

with the IEEE 802.3af/at standard. It has 5.5 x 2.1 mm size DC connectors. It will also provide superior

operation for 10 Mbps 10BASE-T and 100 Mbps 100BASE-TX in addition to the gigabit (1000 Mbps)

1000BASE-T operations. E-link engineers designed the internal wire construction with solid copper,

24 AWG wire. It utilizes shielded connectors with an internal drain wire. A green LED indicates

presence of voltage.

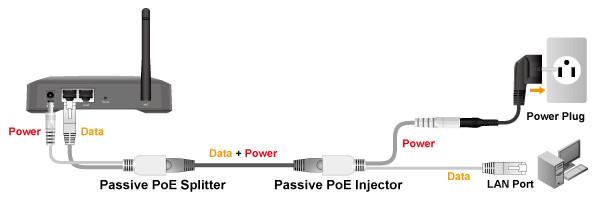

Application

Gigabit Passive Poe Injector and Splitter Kit Includes Passive Injector & Splitter Sides

Technical Indexes

Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Input Voltage 9 to 48VDC +/- 5%, Maximum 56VDC
Power Pin Assignment • Data provide over pairs 1/2(+) and 3/6(-)
• Power over spare pairs 4/5(+) and 7/8(-)
Ethernet Data Rate 10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximum Output Current 1A
Over Current Protection Yes
Ethernet Connectors Shielded with Internal Drain Wire
Internal Wire Size 24 AWG Solid Copper
DC Connector Size 5.5 x 2.1 mm
LED Green Indicating Voltage Present
Housing Material ABS
Dimensions Length = 8 inches (20.3 cm)
Weight: 96 grams (3.3 ounces)
Operating Temperature: 0°C to 45°C (-32°F to 113°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 5% to 90% non-condensing

Orrdering Information

Model Description
LNK-POE-2GP

Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size

DC Connectors
