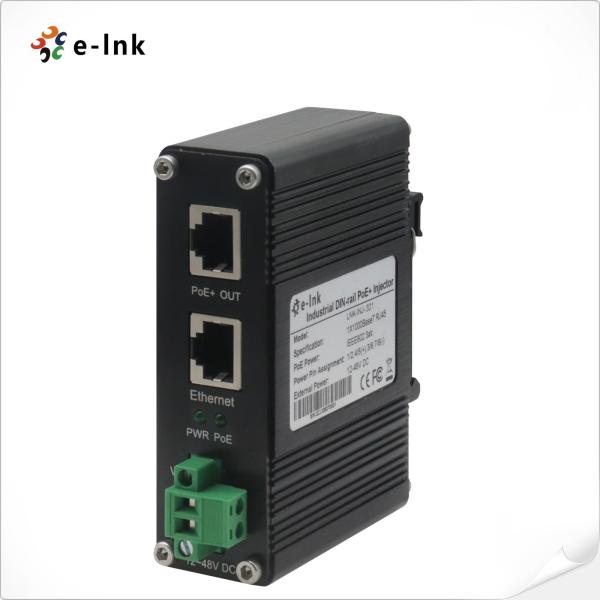

12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
Specifications
Brand Name :
E-link
Model Number :
The LNK-INJ301
Certification :
ISO9001 / CE / RoHS / FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000000PCS/Month
Delivery Time :
1-3working days
Packaging Details :
PoE Ethernet Switch Standard Carton Packaging
Connector :
12~48VDC (Terminal Block)
Casing :
Aluminum Case
Input Power :
12~48VDC Redundant power with polarity reverses protection function
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25kg/pcs
Description

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Support DIN-Rail & Wall-mount installation

Industrial PoE Switch Advantage

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the

IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within

the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T

and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high

availability applications.

Application

12~48VDC Power Input Industrial Gigabit PoE+ Injector Support DIN-Rail & Wall-mount Installation
Technical Indexs

Ethernet
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 36W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
Max. Power per Port: 30W Max per port (Alternative B Mode)
LED Indicators:
Power: Power Status
PoE: PoE Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Orrdering Information

Model Description
LNK-INJ301 12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
