72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
72W Industrial Power Supply
Specifications
Brand Name :
HL
Model Number :
HL-72-12
Certification :
ISO9001,ROHS,CE
Place of Origin :
Chengdu
MOQ :
100PCS
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000000PCS per Month
Delivery Time :
15 Work days
Model Number: :
HL-72-12
Output Power: :
72W
Output Type: :
Single
Output Voltage :
12V
Output Frequency: :
50/60Hz
Output Current: :
6A

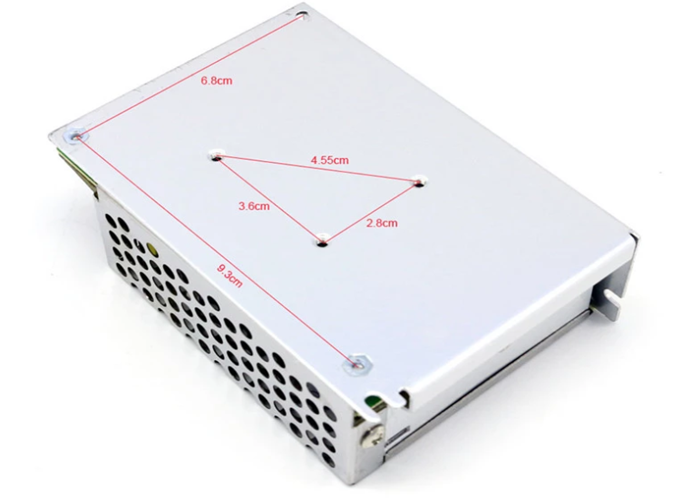

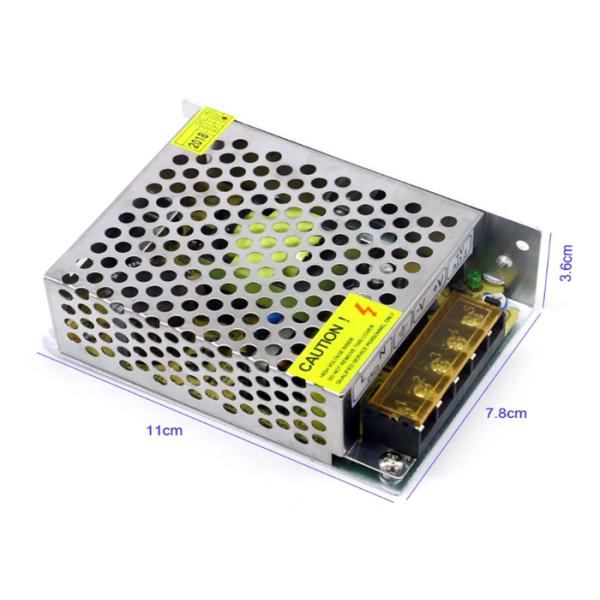

Size L*W*H(cm): :
11*7.8*3.6cm
Weight: :
250g
Description

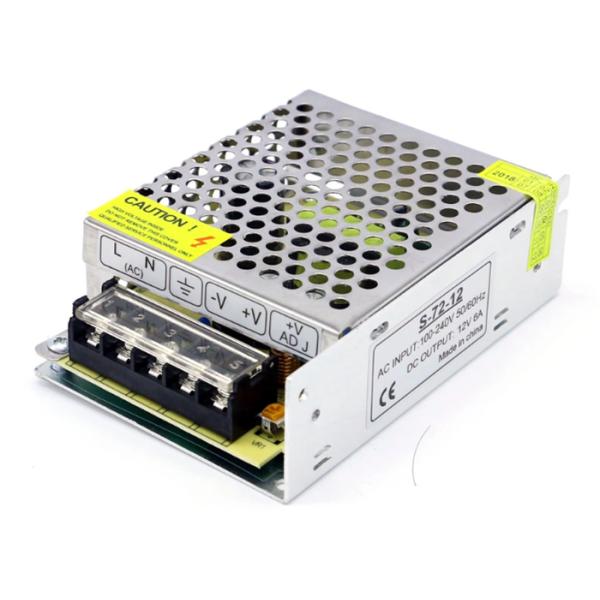

Dc 12V 6A 72W Metal Case Constant Voltage Single Led Power Supply

Product Features:

1.High efficiency, long life and high reliabili

2.Low dc ripple, high efficiency

3.low operation temperature & long performance life

4.input voltage suitable for the world

5.Excellent insulation property, high dielectric strength

6.100% full-load burning test

7.2 years warranty

Product parameters

Model HL-72-12

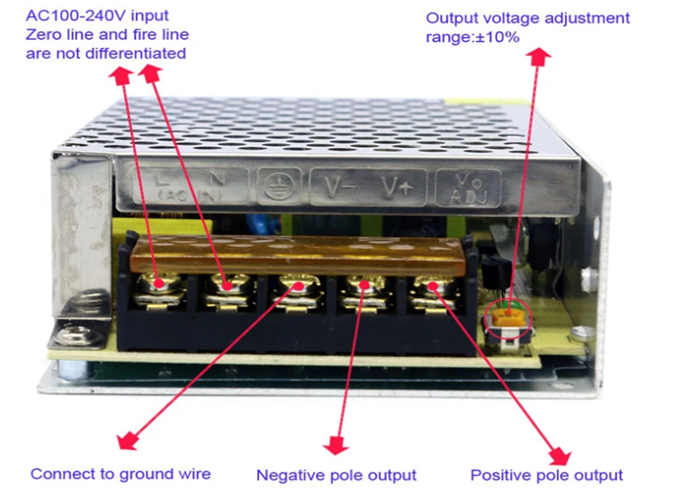

Input AC input voltage range(V) AC100~240V
AC Input current(max) 1.5A /AC220V;
Frequency (Hz) 50/60Hz
Efficiency 85% Typ(230VACFull Load)
Inrush current(A) Cold-start 20A/230V
Leakage current(mA) <3mA/240VAC
Output Output Voltage(V) 12V DC
Voltage Range +5%,-5%
Output Current(A) 6A
Current Range (A) 0-6A
Rated Power(W) 72W
Start time,hold-up time(ms) Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms) Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p) 120mVp-p

Environment

 working Temperature (°C) -40°C - +65°C(refer derating curve)
Storage Temperature(°C) -20°C - +60°C
Humidity 20% - 90% RH non condensing

Protection

 Over voltage Protection >115%-135% Rated output voltage
Over load Protection >105%-150% Auto recovery
Short circuit Protection Latched
Others Size L*W*H(cm) 11*7.8*3.6cm
Weight 250g

72W Industrial Power Supply72W Industrial Power Supply72W Industrial Power Supply72W Industrial Power Supply72W Industrial Power Supply

72W Industrial Power Supply
