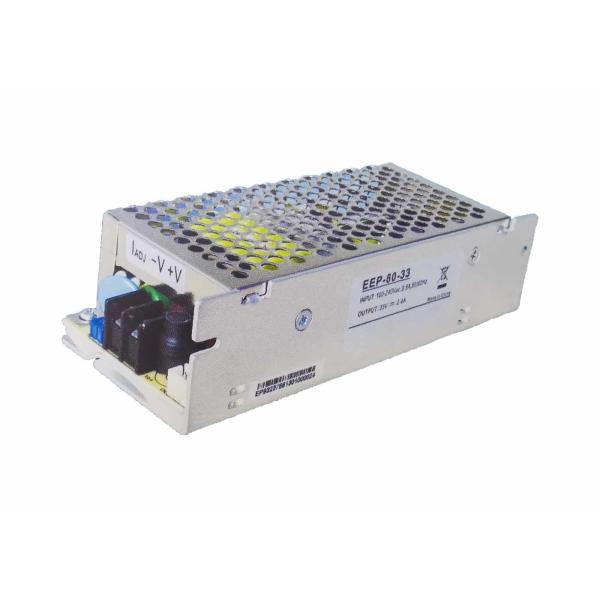

Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
Chengdu
Model Number :
EEP
Input voltage :
90VAC~264VAC
Input frequency :
47Hz~63Hz
Hold up time :
>20ms @ 230VAC full load
Leakage current :
95%~110% auto-recovery
Safety standard :
UL60950-1, EN60950-1
Weight :
0.4kg/pcs
Price :
Negotiation
Description
80W Single Output (with PFC) Industrial Power Supply


Product features


Universal AC input/ full range
PF>0.96@ 115VAC, >0.93 @ 230VAC
Power on indication
Air cooling
Protections: Short circuit / Over load / Over voltage / Over temperature
Constant current or constant voltage (CC/CV)
100% full load burn-in test
Suitable for led display, industry control
2 years warranty

Specifications
Input voltage 90VAC~264VAC
Input frequency 47Hz~63Hz
Inrush current 50A @ 230VAC
30A @ 1100VAC full load cold start
Hold up time >20ms @ 230VAC full load
Leakage current 95%~110% auto-recovery
Operating temperature -20℃~70℃(refer to output load derating curve)
Safety standard UL60950-1, EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
I/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.4kg/pcs
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
Constant Voltage Oem Power Supply , 80W Universal Industrial 12v Power Supply
P/N DC Output Tol. R&N Effi. Load Regulation
EEP-80-33 33V,2.5A ±2.5% 15mV 89% ±2%

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
