24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
Chengdu
Model Number :
EPR
Price :
Negotiation
Inrush current :
40A
Hold up time :
16ms
Overload protection :
110%~ 150%
Over voltage protection :
115%~ 145%
EMC standards :
EN55022 Class B, EN55024
Weight :
0.41kg/pcs
Description

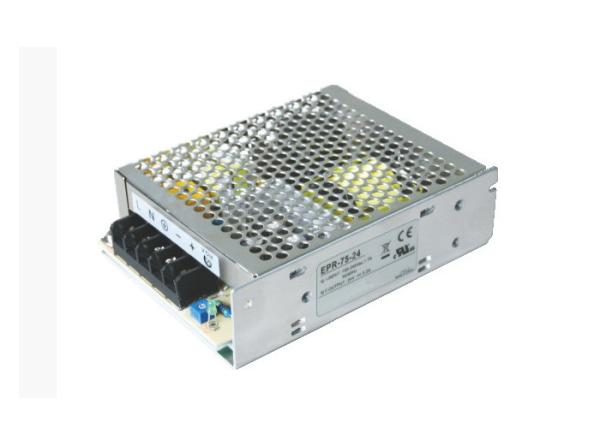

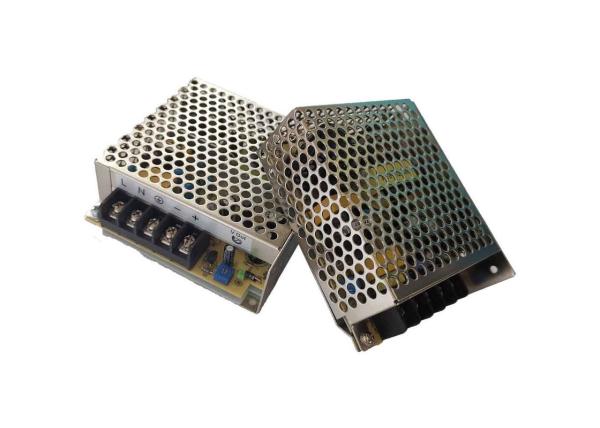

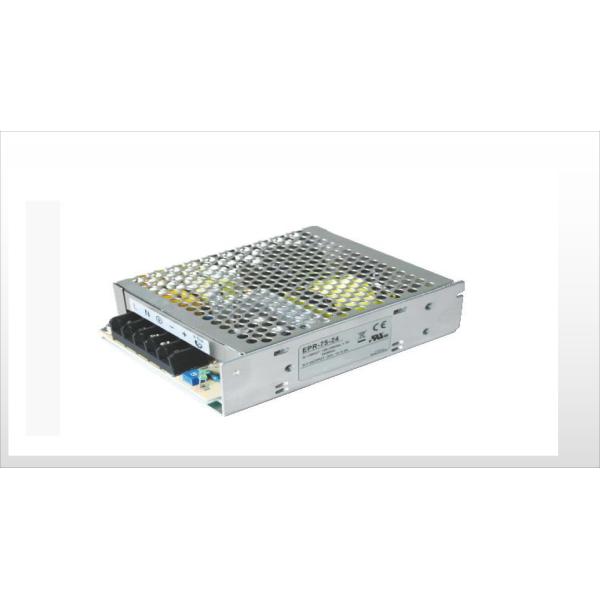

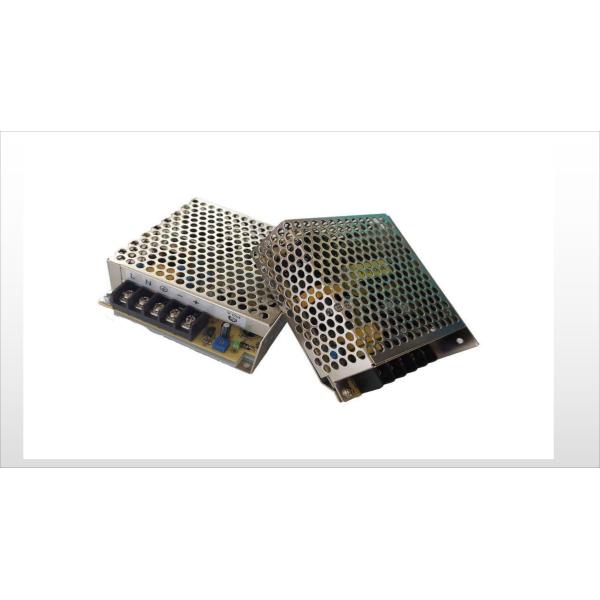

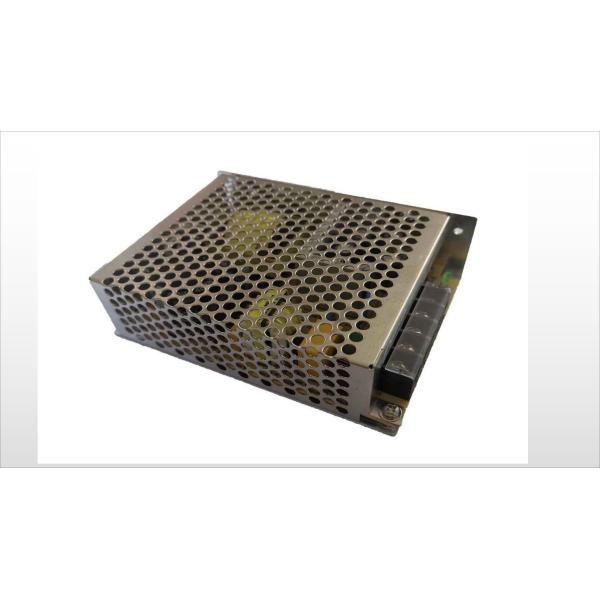

75W 24V 3.2A Single Output Industrial Power Supply EPR-75-24 Mounted Power Supply

Overview

  • Place of Origin:Chengdu, China
    Model Number:EPR-75-24
    Output Type:Single
    Output Voltage:24V AC
    Output Current:3.2A
    Weight:0.41kg/pcs
    Type:Constant Voltage
    Protection:Overload/Over voltage/Short circuit
    Output Power:24V,3.2A
    Input Voltage:88VAC~264VAC,124VDC~370VDC
    Input Frequency:47HZ~63HZ
    Warranty:2 Years
    Efficiency:84%

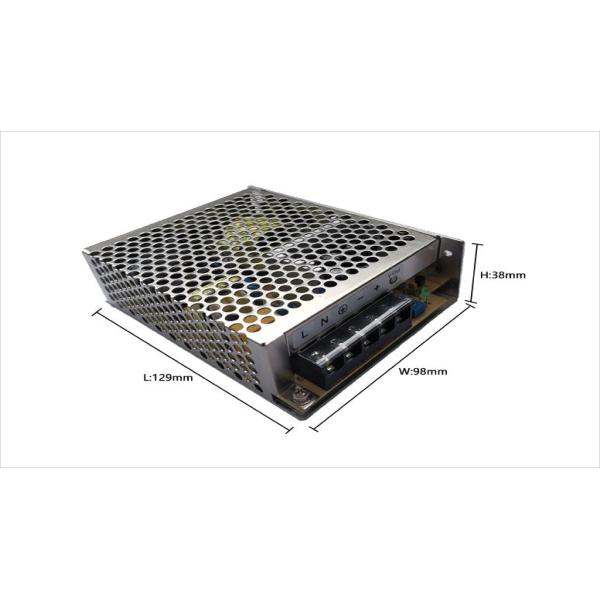

    Size:129mm*98mm*38mm
    Ripple&Noise:<120MV
    Working Temp.:-20℃~70℃(refer to output derating curve)



Product features

  • Universal AC input / full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • High efficiency, low temperature rise, high cost performance
  • LED indicator for power on
  • 2 years warranty

Specifications

Withstand voltage :l/P-O/P: 1 .5kVAC, 1min l/P-FG: 1 .5kVAC, 1min O/P-FG: 0.5kVAC, 1min

Input voltage 90VAC~264VAC, 110VDC~370VDC
Input frequency 47HZ~63HZ
Inrush current 40A
Hold up time 16ms
Overload protection 110%~ 150%
Over voltage protection 115%~ 145%
Operating temperature -20℃~70℃(refer to output load derating curve)
Safety standards EN60950-1, GB4943-2001
EMC standards EN55022 Class B, EN55024
Weight 0.41kg/pcs

24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight

OUR ADVANTAGES

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight
24V 3.2A 75W Panel Mount Power Supply 16ms Hold Up Time 0.41kg / Pcs Weight

P/N Output Tol. R&N Effi. Load Regulation DC adjustment range
ESP-75C-5 5V,12A ±3% 100mV 78% ±2% 4.75V~5.25V
ESP-75C-12 12V,6.2A ±3% 100mV 86% ±2% 10.8V~13.2V
ESP-75C-24 24V,3.2A ±3% 100mV 88% ±2% 21.6V~26.4V
ESP-75C-48 48V,1.6A ±3% 200mV 88% ±2% 43.2V~52.8V


FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
