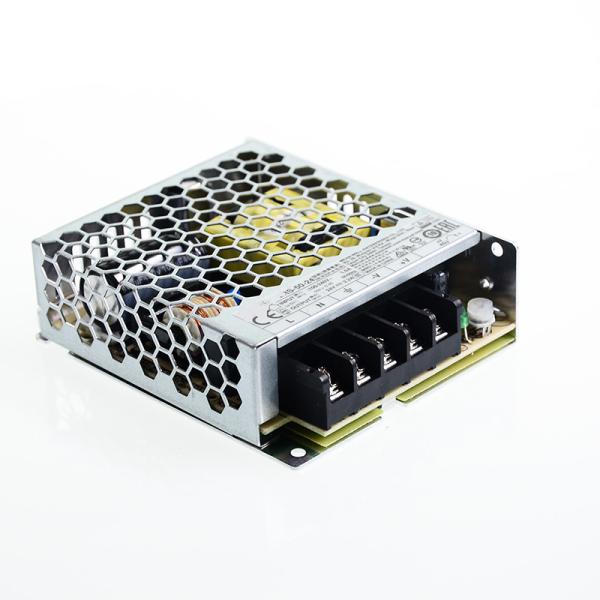

Ultra-thin general switching power supply

Product features

. Universal AC input/full range;DC input

. Ultra-thin,30mm height

. No load power consumption≤0.3W,meet class of energy star

. 5G vibration

. Protections:Overload/Over voltage/Short circuit

. Air cooling

. 3years warranty

Specifications

Input voltage 90VAC-264VAC,127VDC-370VDC

Input frequency 47HZ-63HZ

Inrush current 35A@230VAC full load cold start

20A@110VAC full load cold start

Hold-up time >30ms@230Vacfull load

Overload protection 110%-180% auto-recovery

Over voltage protection 120%-145% vo

Operating temperature -20℃-70℃

Safety standard UL60950 CCC GB4943.1:2011

EMC standard EN55024 Class B,EN61000-3-2,-3,EN55024(IEC61000-4-2,3,4,5,6,8,11)

Withstand voltage I/P-O/P:1.5KVac,1min,I/P-FG:1.5KVac,1min;O/P-FG:0.5KVac,1min;

MTBF 300,000hours at 25℃

Weight 0.2Kg/Pcs

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it
