Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply
Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply
Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply
Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
Delivery Time :
10 work days
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Input voltage :
90VAC~264VAC
Hold up time :
>16ms @ 230VAC full load
Operating temperature :
-40℃~70℃(refer to output load derating curve)
Safety standard :
UL60950-1, EN60950-1
Weight :
0.58kg/pcs
EMC standard :
EN55022 Class B, EN55024
Price :
Negotiation
Description

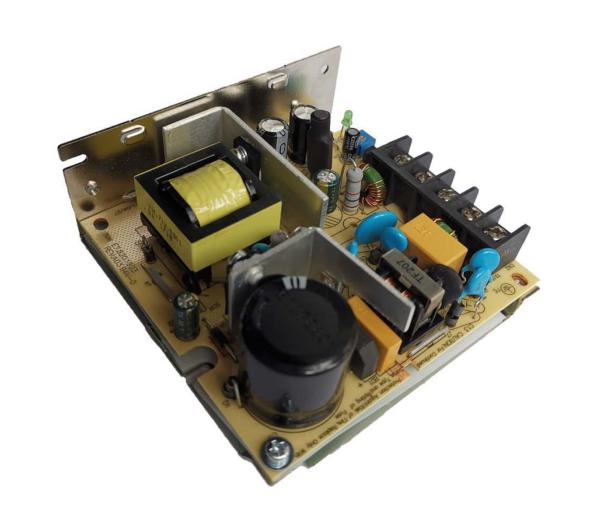

200W Single Output (with PFC) Industrial Power Supply

Product features
Universal AC input / full range
PF>0.99@ 115VAC, >0.95 @ 230VAC
Built-in remote ON/OFF control
Standby power consumption≤0.5W
Power on indication
Integrated design, small size
Protection: Overload / Over voltage / Short circuit
100% full load burn-in test
3 years warranty
Specifications

Input voltage 90VAC~264VAC
Input frequency 47HZ~63Hz
Inrush current 70A @ 230VAC
35A @ 110VAC full load cold start
Hold up time >16ms @ 230VAC full load
Overload protection 105%~150%
Over voltage protection 105%~ 140%
Operating temperature -40℃~70℃(refer to output load derating curve)
Safety standard UL60950-1, EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
I/P-FG: 1 5kVAC, 1min
O/P-FG; 0.5kVAC, 1min

Weight 0.58kg/pcs

Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power SupplyRemote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply

Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply

Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply

Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply

Remote ON / OFF Control 200w Power Supply , Full Load Automotive Power Supply

P/N Output Tol. R&N Effi. Load Regulation
ESF-200-12 12V,16.7A ±2% 120mV 90% ±1%
ESF-200-24 24V,8.4A ±1% 200mV 91% ±0.9%
ESF-200-36 36V,5.6A ±1% 300mV 91% ±0.9%
ESF-200-48 48V,4.2A ±1% 300mV 92% ±0.9%
FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
