- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply
- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
10 work days
Input voltage :
90VAC~264VAC
Output voltage :
24VDC
Input frequency :
47HZ~63Hz
Storage temperature :
-45℃~90℃
R&N :
≤240mV
Efficiency :
>82%
Price :
Negotiation
Description

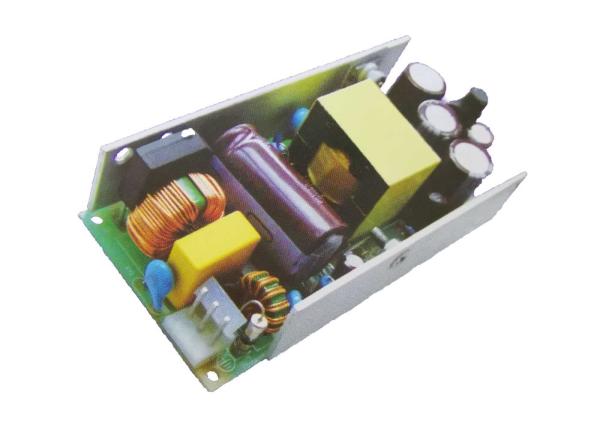

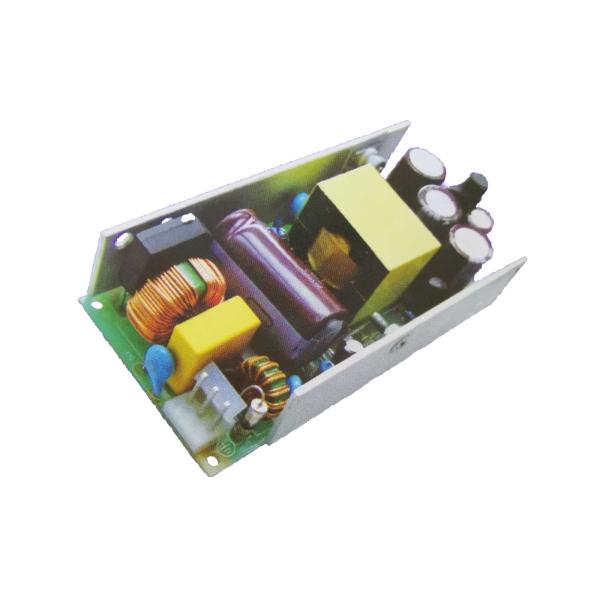

10~30W Single Output Industrial Power Supply

Product features


Universal AC input / full range
Protections: Overload / Over voltage / Short circuit

100% full load burn-in test

2 years warranty

Specifications


Input voltage 90VAC~264VAC

Output voltage 24VDC

Input frequency 47HZ~63Hz
Operating temperature -20℃~70℃

Storage temperature -45℃~90℃

R&N ≤240mV
Voltage regulation ±3%

Efficiency >82%
Safety standards UL60950-1, GB4943-2001

EMC standards EN55022 Class B, EN55024

Weight 0.11kg/pcs (OP 10~30W)

0.30kg/pcs (OP 30~60W)

- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply

- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply

- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply

- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply

- 45 ℃ - 90 ℃ DC 24v Power Supply , 10 - 30W 3 Phase Electrical Supply

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
