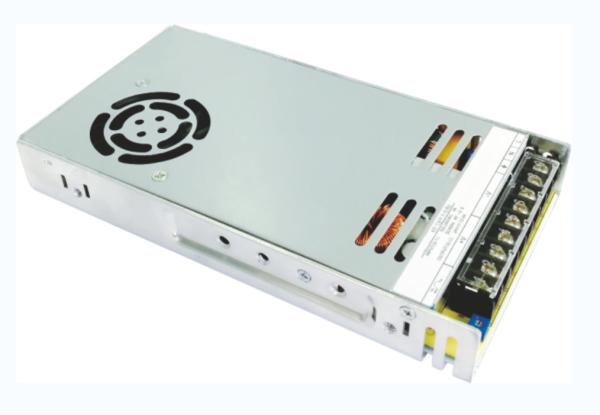

Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc
Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc
Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc
Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
10 work days
Price :
Negotiation
Input frequency :
47HZ~63Hz
Hold up time :
>20ms @ 230VAC full load
Operating temperature :
-20℃~70℃(refer to output load derating curve)
Safety standard :
UL60950-1, EN60950-1
EMC standard :
EN55022 Class B, EN55024
Weight :
0.4kg/pcs
Description

100W Single Output (with PFC) Industrial Power Supply

Product features
Universal AC input / full range
PF>0.96@ 115VAC, >0.93 @ 230VAC
Power on indication
Air cooling
Protections: Short circuit / Over load / Over voltage / Over temperature
Constant current or constant voltage (CC/CV)
100% full load burn-in test
Suitable for led display, industry control
2 years warranty
Specifications

Input voltage 90VAC~264VAC
Input frequency 47HZ~63Hz
Inrush current 50A @ 230VAC
30A @ 1100VAC full load cold start
Hold up time >20ms @ 230VAC full load
Leakage current 95%~110% auto-recovery
Operating temperature -20℃~70℃(refer to output load derating curve)
Safety standard UL60950-1, EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
l/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min

Weight 0.4kg/pcs

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage
Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc

Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc

Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc

Constant Current Led Display Power Supply , 100W Dc To Dc Power Supply For Pc

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

P/N DC Output Tol. R&N Effi. Load Regulation
EEP-100-33 33V,3.1A ±2.5% 150mV 89% ±2%
