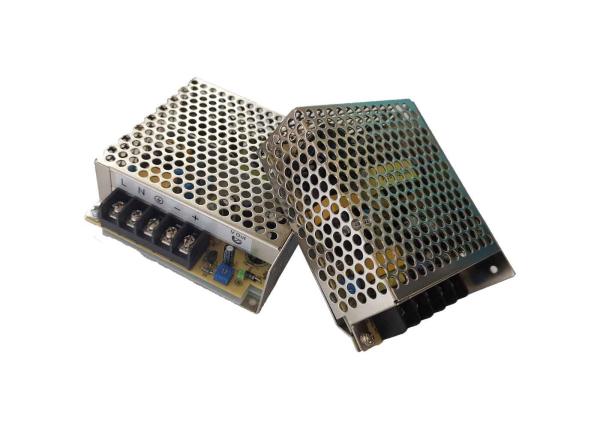

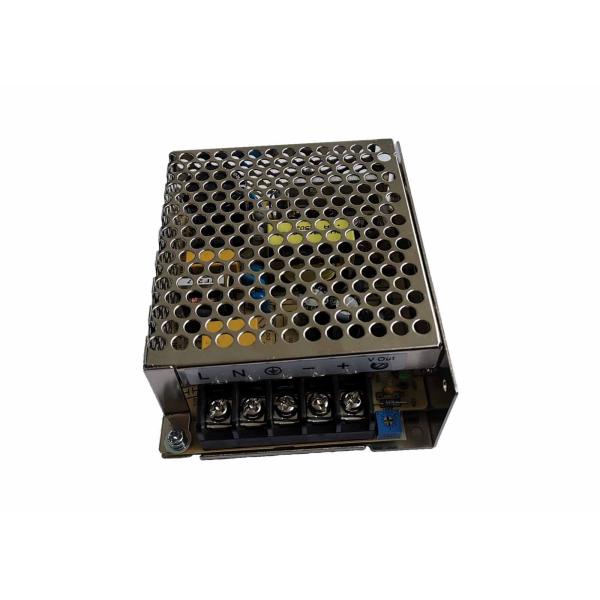

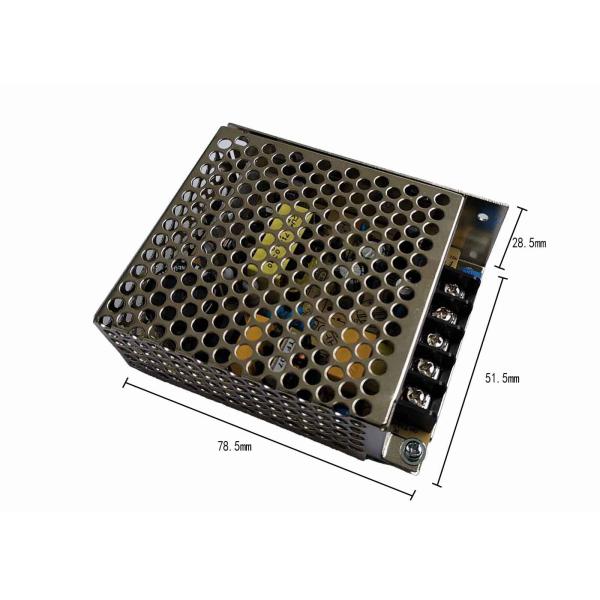

UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
Chengdu
Model Number :
EPR
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
10 work days
Input voltage :
88VAC~264VAC, 124VDC~370VDC
Inrush current :
30A @ 230VAC full load cold start
Hold up time :
≥20ms @ 230VAC full load
Operating temperature :
-20℃~70℃ (refer to output derating curve)
Safety standard :
UL60950-1
EMC standard :
EN55022 Class B, EN55024
Price :
Negotiation
Description

25W Single Output Industrial Power Supply EPR-25 Mounted Power Supply

Product features


Universal AC input / full range

Power on indication
Protections: Overload / Short circuit
High reliability: 105℃ capacitor, withstand 300VAC surge input for 5s

100% full load burn-in test

2 years warranty

Specifications

Input voltage 88VAC~264VAC, 124VDC~370VDC
Input frequency 47Hz~63Hz
Inrush current 30A @ 230VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 110%~ 180% auto-recovery
Operating temperature -20℃~70℃ (refer to output derating curve)
Safety standard UL60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
I/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.17kg/pcs
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
UL 60950 PDF Din Rail Mount Power Supply , 25 Watt Universal Switching Power Supply
P/N Output Tol. R&N Effi. Load Regulation DC adjustment range
EPR-25-5 5V,5A ±3% 80mV 76% ±2% 4.75V~5.25V
EPR-25-12 12V,2.1A ±3% 120mV 79% ±2% 10.8V~13.2V
EPR-25-24 24V,1.1A ±3% 120mV 81% ±2% 21.6V~26.4V
EPR-25-48 48V,0.57A ±3% 200mV 83% ±2% 43.2V~52.8V

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
