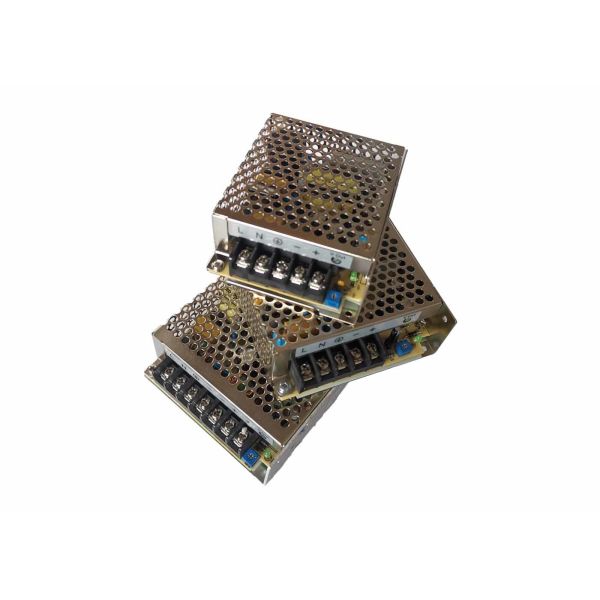

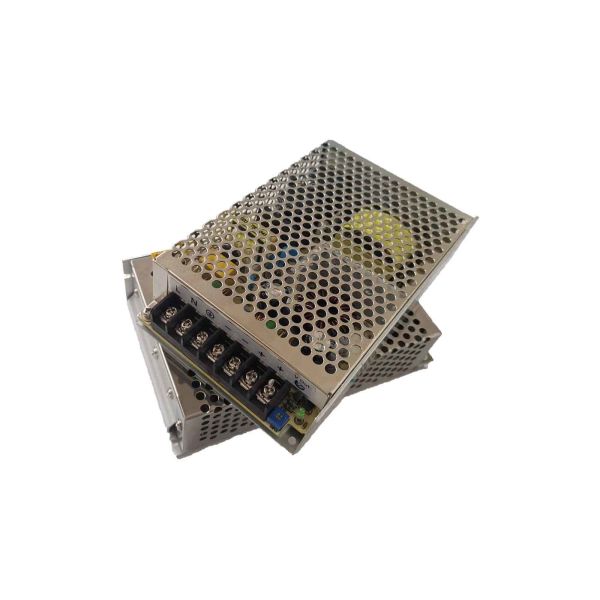

230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply
230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply
230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply
230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
10 work days
MOQ :
1000
Price :
Negotiation
Inrush current :
40A@ 220VAC full load cold start
Input voltage :
195VAC~253VAC
Hold up time :
≥20ms @ 230VAC full load
Overload protection :
300% of the rated output power
Safety standard :
EN60950, GB4943- 2001
Weight :
0.37kg/pcs
Description

20W Single Output (230V AC input only) Industrial Power Supply

Product features
230VAC input only
Power on indication
Metal case
Protections: Overload / Short circuit
Battery reverse charge protection
100% full load burn-in test
1 year warranty

Specifications

Input voltage 195VAC~253VAC

Input frequency 50HZ~60Hz

Inrush current 40A@ 220VAC full load cold start

Hold up time ≥20ms @ 230VAC full load

Overload protection 300% of the rated output power
Operating temperature -20℃~40℃

Safety standard EN60950, GB4943- 2001

EMC standard EN55022 Class B, EN55024

Withstand voltage I/P-O/P: 1.5kVAC, 1min

I/P-FG: 1 .5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.37kg/pcs

230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply

230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply


230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply

230V AC Input Only Din Rail Ups Power Supply , 20W Adjustable Switching Power Supply

P/N Output Tol. R&N Effi. Load Regulation
ESP-20-13.8 13.8V,1.5A ±3% 140mV 80% ±2%

FAQ

Q1: How many year warranty of your Led driver?
A: One years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
