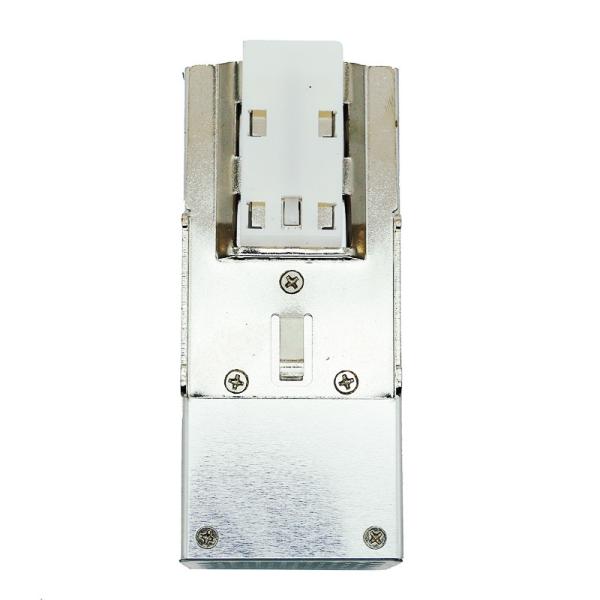

Din-Rail type 480W Switching Power Supply(EDA Series)

Product features

. Universal AC input/full range

. High efficiency up to 94%

. Power on indication

. Protections:Overload/Over voltage/Short circuit/Over temperature

. 100% full load burn-in test

. Air cooling

. 3-year warranty

Specifications

Input voltage 90VAC-264VAC,124VDC-370VDC

Input frequency 47HZ-63HZ

Inrush current 35A@230VAC full load cold start

Hold-up time >20ms@230Vacfull load

Overload protection 105%-150% constant current liniting,auto-recovery

Over voltage protection 120%-140%

Operating temperature -25℃-70℃

Safety standard UL60950 ,UL508

EMC standard EN55022 Class B,EN61000-6-2

Withstand voltage I/P-O/P:3KVac,1min,I/P-FG:1.5KVac,1min;O/P-FG:0.5KVac,1min;

MTBF 300,000hours at 25℃

Weight 1.32kg/pcs

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
