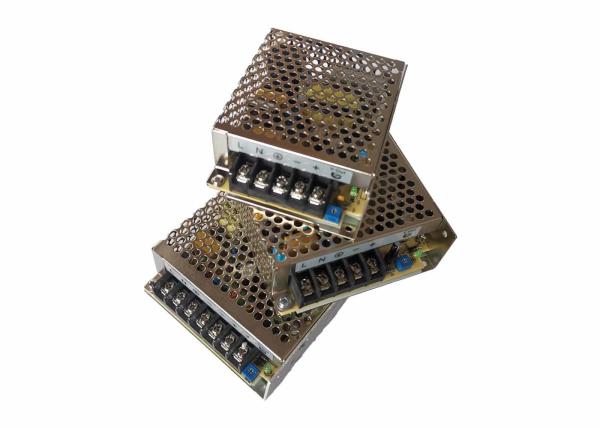

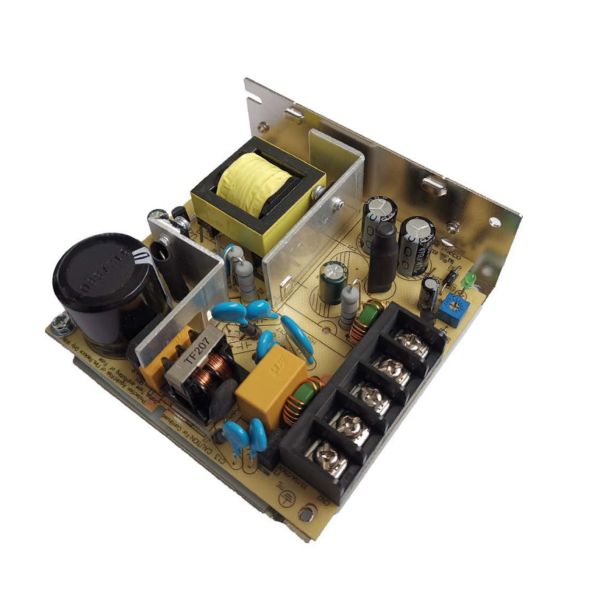

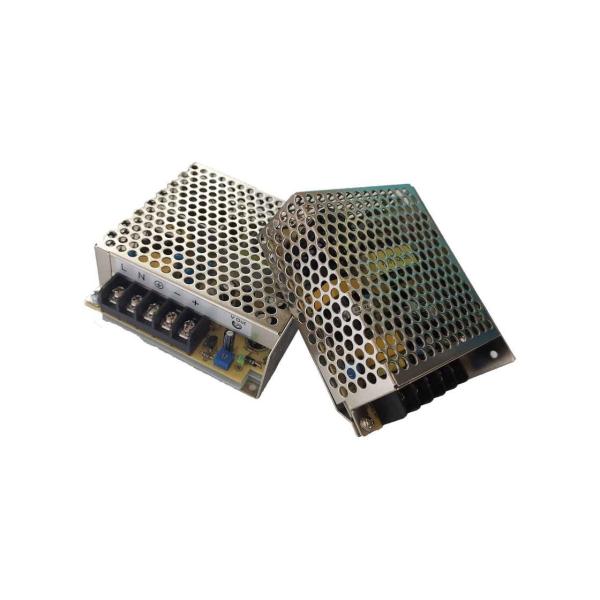

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
Model Number :
ESP
MOQ :
500
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
5-8 work days
Price :
Negotiation
Input voltage :
90VAC~264VAC
Hold up time :
≥20ms @ 230VAC full load
Overload protection :
110%~150% auto-recovery
Over voltage protection :
110%~ 145%
Operating temperature :
-20℃~70℃(refer to output derating curve)
Weight :
0.35kg/pcs
Description
60W Single Output Industrial Power Supply

Product features
  • Universal AC input / full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • High efficiency, low temperature rise, high cost performance
  • LED indicator for power on
  • 2 years warranty
Specifications

Input voltage 90VAC~264VAC
Input frequency 47HZ~63HZ
Inrush current 40A @ 230VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 110%~150% auto-recovery
Over voltage protection 110%~ 145%
Operating temperature -20℃~70℃(refer to output derating curve)
Safety standard EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
l/P-FG: 1 .5kVAC, 1min
O/P-FG: 0.5kVAC, 1min

Weight 0.35kg/pcs
60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

60W Auto Recovery Din Rail Switching Power Supply Low Temperature Rise Durable

P/N Output Tol. R&N Effi. Load Regulation DC adjustment range
ESP-60-12 12V,5A ±3% 120mV 84% ±2% 10.8V~13.2V
ESP-60-15 15V,4A ±3% 120mV 87% ±2% 13.5V~16.5V
ESP-60-18 18V,3.3A ±3% 150mV 88% ±2% 16.2V~19.8V
ESP-60-24 24V,2.5A ±3% 240mV 88% ±2% 21.6V~26.4V
ESP-60-36 36V,1.6A ±3% 240mV 89% ±2% 32.4V~39.6V
ESP-60-48 48V,1.25A ±3% 240mV 89% ±2% 43.2V~52.8V
FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
