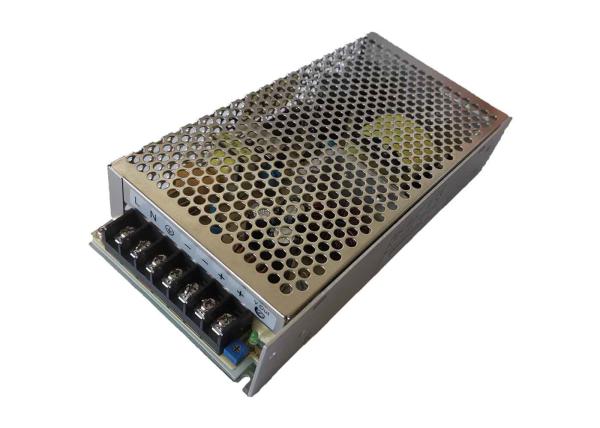

EN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power Supply
EN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
10 work days
Price :
Negotiation
Input voltage :
88VAC~132VAC, 176VAC~264VAC,249VDC~370VDC
Inrush current :
35A @ 230VAC full load cold start
Overload protection :
110%~ 150% auto-recovery
Over voltage protection :
110%~ 145%
Safety standard :
UL60950-1, TUV EN60950-1
EMC standard :
EN55022 Class B, EN55024
Description

150W Single Output Industrial Power Supply

Product features

AC input selectable by switch
Power on indication
Protections: Overload / Over voltage / Short circuit
High reliability: 105℃ capacitor, withstand 300VAC surge input for 5s
100%full load burn-in test
2 years warranty
Specifications
Input voltage 88VAC~132VAC, 176VAC~264VAC,249VDC~370VDC
Input frequency 47HZ~63HZ
Inrush current 35A @ 230VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 110%~ 150% auto-recovery
Over voltage protection 110%~ 145%
Operating temperature -20℃~70℃ (refer to output derating curve)
Safety standard UL60950-1, TUV EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage l/P-O/P: 1.5kVAC, 1min
l/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.61kg/pcs
EN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power SupplyEN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power SupplyEN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power SupplyEN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power SupplyEN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power SupplyEN55024 Single Mode Power Supply , Full Load 150W Adaptor Switching Power Supply
P/N Output Tol. R&N Effi. Load Regulation DC adjustment range
EPR-150-5 5V,22A ±3% 80mV 77% ±2% 4.75V~5.25V
EPR-150-12 12V,12.5A ±3% 120mV 83% ±2% 10.8V~13.2V
EPR-150-15 15V,10A ±3% 120mV 83% ±2% 13.5V~16.5V
EPR-150-24 24V,6.5A ±3% 120mV 86% ±2% 21.6V~26.4V
EPR-150-36 36V,4.1A ±3% 200mV 86% ±2% 32.4V~39.6V
EPR-150-48 48V,3.3A ±3% 200mV 87% ±2% 43.2V~52.8V
