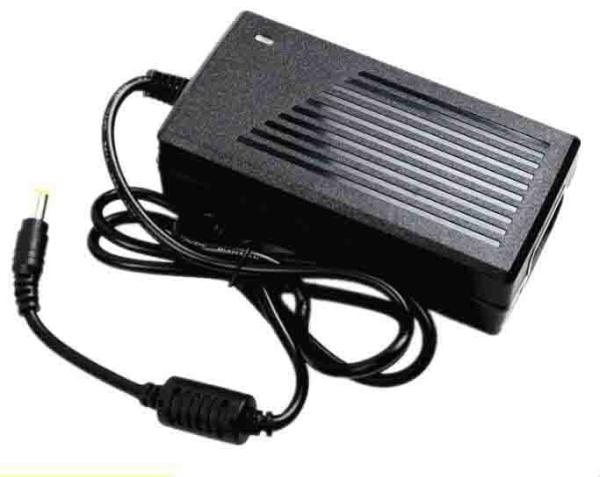

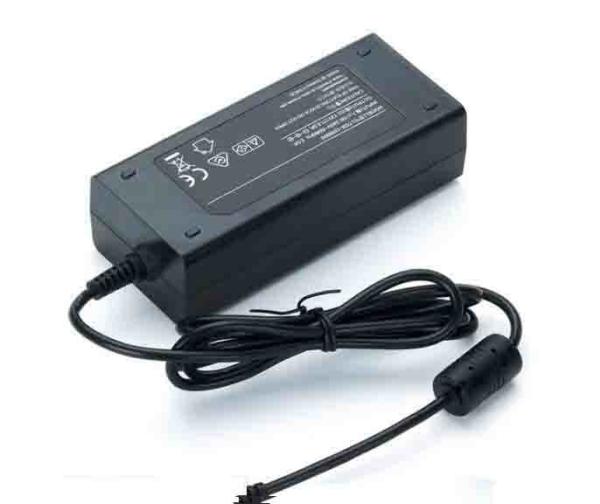

1500W Power Battery Charger China Domestic Volitage Service Environment

Overview

Place of Origin:Chengdu,China

Model Number:GQC51MA-7208

Appearance:L:228* W:142* H:60mm

AC Input Voltage:AC90V~264V 47HZ~63HZ

AC Input Current:16Amax,16Amax@230VAC/60HZ full load test

AC Input Surge Current:100A(RMS)maximum for AC 230V/50HZ full load test

Rated Total Output Power:1470W

Output Voltage:72Vdc

Output Current:8.5A

Efficiency:≥87%

Insulation Impedance:≥30MΩ@500VDC;60S

Operating Humidity:5%RH~90%RH Condensation

Storage Humidity:5%RH~90%RH Condensation

Product Features

Power natual cooling

Rated total output power 1470W

With input undervoltage and overvoltage protection,output short circuit protection, output over-current protection, output over-voltage protection, over-temperature protection and other functions, dual output with power indicator light.

The charger is designed in strict accordance with safety regulations and meets the safety standards of charger equipment.

Specifications

Input line specification,output ripple voltage, efficiency, mean time between failures, lightning surge, static standard, withstand voltage and other attributes can be designed according to customer requirements.

OUR ADVANTAGES

Beautiful appearance generous, aluminum alloy shell, lightweight and practical.

Stable design scheme, excellence in the process of production process standards, the manufacture of high quality products.

The enclosure is naturally cooled and has zero noise.

FAQ

Q: What is the main product of your company ?

A: Switching Power Adapters.

Q: What certificates do you have ?

A: Our products have completely been approved CE,ROHS,ISO9001,etc.

In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.

Q: Would you give me more details about the price of your products ?

A: We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.
