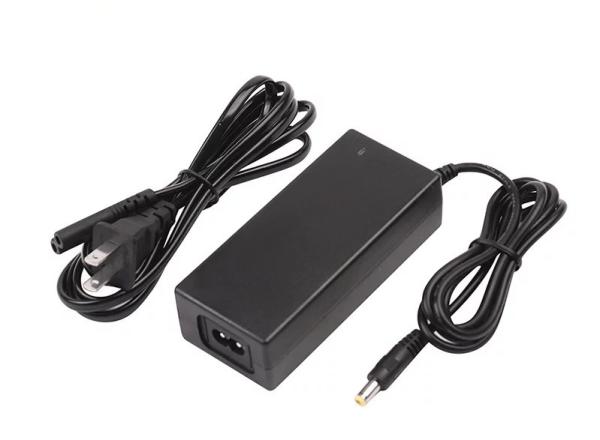

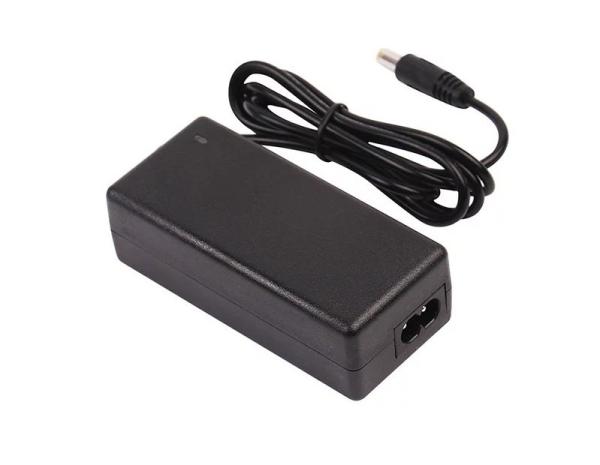

48W Desktop Seitching Power Supply Adapter GQ48

Overview

Place of Origin:Chengdu,China

Model Number:GQ48

Appearance:L:107* W:45* H:31mm

AC Input Voltage:AC90V~264V 47HZ~63HZ

AC Input Current:1.2Amax,@100VAC/60HZ full load test

Input Voltage:AC90V-264V 50HZ/60HZ

Output Load:0%~100%

Efficiency:Five or Six Level energy efficiency

Working Temp:0℃~45℃

Plug:Europe,America,China,Australia,Japan and South Korea

Insulation Impedance:≥30MΩ@500VDC;60S

GQ48 products for our 48W series switch power adapter products,the maximum power up to 36W output.The pins are both fixed and convertible,withgood performance in temperature rise and EMI,meeting the requirements of energy efficiency levels Six in the United States nd energy efficiency levels 1 in the EuropeannUnion CoC,with reliable protection functions such as high-precision output OVP,OCP and SCP.Effectively product the power supply and user safety of terminal equipment.

Product Features

Temperature rise and EMI performed well

High precision output OVP,OCP,SCP reliable protection

Effectively protect the power supply and user safety of terminal equipment

Specifications

DC AC plug specifications, output ripple voltage, efficiency, mean time between failures, lightning surge, static standard, withstand voltage and other attributes can be designed according to customer requirements.

We can design according to customer requirements

(output line specification,plug modle style,efficification,electrostatic standard)

Application

Information products

Multimedia intelligent voice products

Intelligent small home appliance market(Dc fan ,Water purifier,Humidifier,Air purifier,Sweeper,Vacuum cleaner,etc.)security equimpent

Smart wear

Intelligent lighting

Power tools products

Advantage

Beautiful and practical appearance, both a variety of pins and optional switch head structure, black and white optional

Standby power consumption is less than 75mV, and energy efficiency meets the energy efficiency requirements of level 6 in the United States and phase ii of CoC in the European Union

Stable design scheme, excellence in the process of production process standards, the manufacture of high quality products

Safety ceitification complete,with high-precision output OVP,OCP,SCP and other protection functions,safe and reliable

OEM&ODM SERVICE

This company is engaged in the design,manufacture and sale of switching power series
Long-time burn-intest
Each of the Plug-in Wall Switching Power Adapter is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,,input voltage 5 seconds without damage

FAQ

Q: What is the main product of your company ?

A: AC Switching Power Adapters.

Q: What certificates do you have ?

A: Our products have completely been approved CE,ROHS,ISO9001,etc.

In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.

Q: Would you give me more details about the price of your products ?

A: We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.
