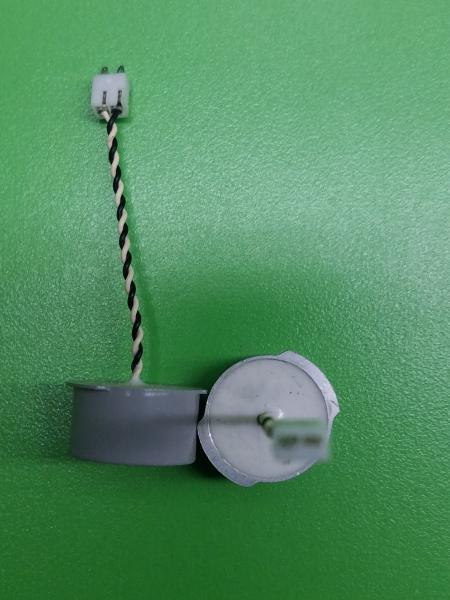

60 - 5000mm Front And Back Parking Sensors , APA Ultrasonic Garage Parking Sensor
60 - 5000mm Front And Back Parking Sensors , APA Ultrasonic Garage Parking Sensor
Specifications
Brand Name :
HAOLI
Model Number :
HL-14TRAJ-T1
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
500
Price :
Negotiation
Payment Terms :
TT
Supply Ability :
1000pcs/10days
Delivery Time :
10work days
Frequency :
48±1KHZ
Capacicent :
1500±10%
Ring Time :
≤1.5ms
Sensitivity :
Min.320us at 1.5m
Directivity :
X：55±5°；Y：50±5°
Operating Temperature :
-40℃—85℃
Description

48KHZ-15.5 Ultrasonic Parking Sensor Automatic Parking Long Distance Sensor Transducer

Description

The ultrasonic sensor is the key component of the APA system. It uses ultrasound to measure the distance to obstacles near the vehicle, from which the size of the parking space and the vehicles position can be calculated.

Features:

- Long detection range, up to 5000mm
- Excellent directivity
- No interference with reverse parking sensors

Seplification

Product Automatic Parking Sensor
Frequency 48±1KHZ
Decay Time Max.1.5ms
Sensitivity Min.320us
Capacicence at 1KHZ 1400±20%
Directivity X:55±5°;Y:50±5°
Sound Pressure

Min.100dB(10Vrms/30cm)
Operating Temperature -40℃~+80℃
Measure Distance 60~5000mm
Max.input voltage Max.150vp-p
