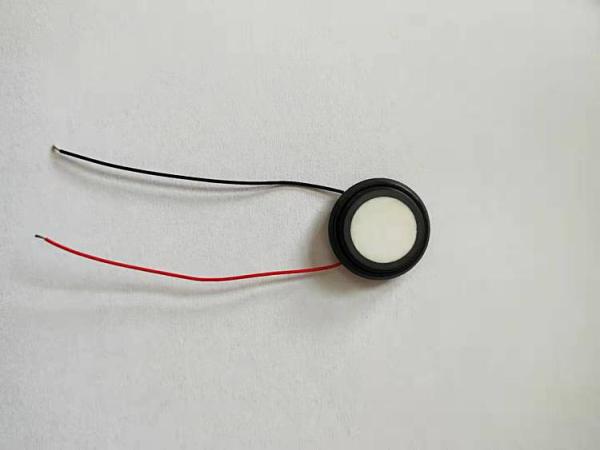

Air Flow Ceramic Ultrasonic Transducer , Low Consumption Barometric Pressure Transducer
Air Flow Ceramic Ultrasonic Transducer , Low Consumption Barometric Pressure Transducer
Specifications
Brand Name :
HAOLI
Model Number :
HL-175-30
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
500
Price :
Negotiation
Payment Terms :
TT
Supply Ability :
1000pcs/10days
Delivery Time :
10work days
Frequency :
500±10KHZ
Capacicent :
1600±20%
Dalay Time :
≤0.5ms
Range :
3-0.3m
Directivity :
7±1°
Operating Temperature :
-30℃...+60℃
Description

500KHZ Barometer Ultrasonic Transducer

Product Description

working at the frequency at 500KHz. Comparing with low frequency transducer, it is much narrower in FOV(<10°) & more precise (mm resolution). By using the calculation of TOF ( Time of Flight), this transducer can be used to measure not only short range distance, but also for air/gas flow, etc.

Center frequency 500±5KHz
Echo Sensitivity -60dB min
Min.Parallel Resistance 250Ω±30%
Capacitance 1900±20%pF
Typical Sensing Range 0.1~2m
Directivity deg 7°±2°(-6dB)
Max.Input Voltage 100Vp-p
Protection Class IP65
Min.Parallel Resistance 250±50Ω
Mechanical quality factor(Qm) min.40
Operating Temperature -20-+80℃
Storage Temperature -35-+85℃
Housing Material polymers
