Industrial Humidifier Ultrasonic Atomizing Transducer 5 - 60 ℃ OperatingTemperature
Industrial Humidifier Ultrasonic Atomizing Transducer 5 - 60 ℃ OperatingTemperature
Industrial Humidifier Ultrasonic Atomizing Transducer 5 - 60 ℃ OperatingTemperature
Industrial Humidifier Ultrasonic Atomizing Transducer 5 - 60 ℃ OperatingTemperature
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
500
Payment Terms :
TT
Product :
piezo ceramic misting elements
Frequency(KHZ) :
108±5
Rated Voltage(Vdc) :
3-12
AtomizationAmount(ml/h) :
min.100
WeldingPointandLineCanPullForce(KG) :
0.4.Min
Hole Area（mm） :
3±0.2
Aperture（um）） :
7±0.1
Hole Count（pcs） :
500±5
Price :
Negotiation
Description

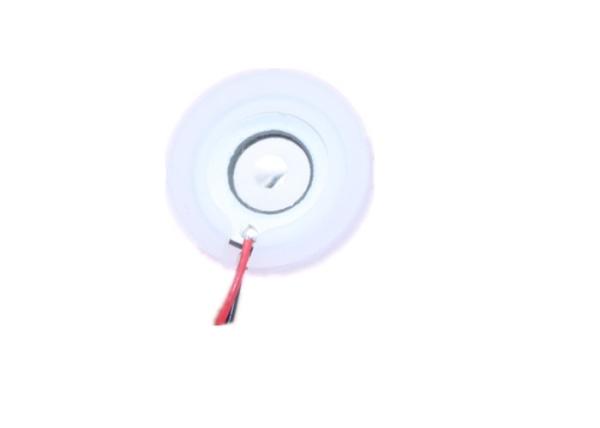

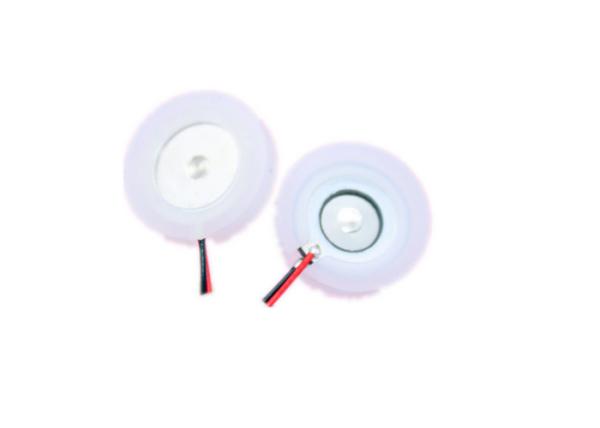

180K Flat Ultrasonic Atomizing Piezoelectric Transducer

Description

The small ultrasonic atomizing piezoelectric transducer can be customized according to your requirement. Humidifier how much spray adjustment method? Many types of humidifiers, I have learned that industrial humidifier, aromatherapy humidifier, mini fan humidifier, ultrasonic humidifier, etc.

TechnicalTerms

ResonantFrequency(KHz) 108±5
RatedVoltage(Vdc) 3~12
Acpeakvoltage(vpp) 60~90
Capacitance(pf) 3100±20%
InputPower(w) 0.8~1.8
HarmonicImpedance Max.350Ω
OperatingTemperature 5~60°
CUsingWaterQuality DrinkWater
Welding Point CanPullForce (KG)≥0.4
Connection 157#200*1.0+2.0
TerminalHoleArea 3±0.2mm
Aperture 7±1um
holecount 500±5PCS
Sheet steel material SUS304
rubberring Silicone

Product tags

ultrasonic transducer for atomizer

,

ultrasonic atomizer transducer

,

ultrasonic humidifier transducer
