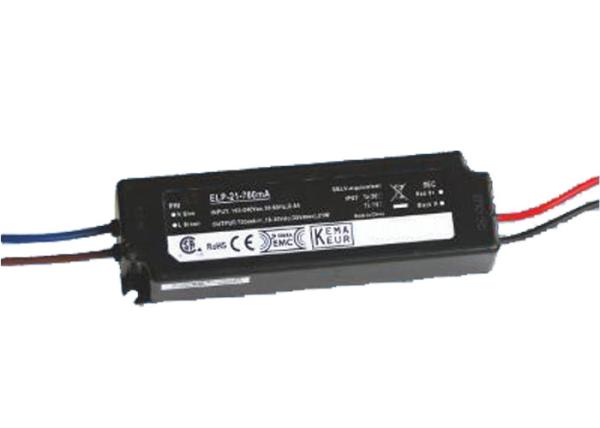

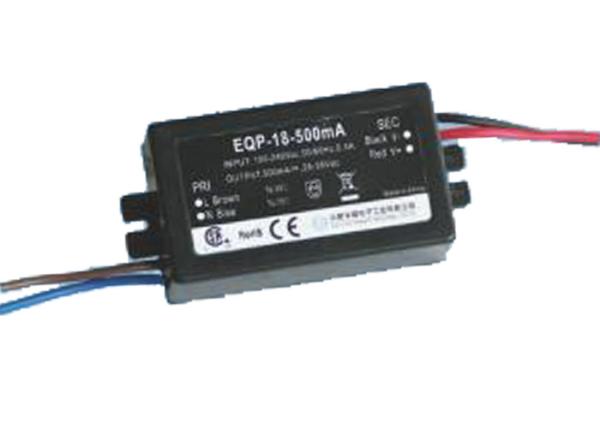

Constant Current Source Molded Case Waterproof 14W-21W LED Switching Power Supply

Product features

• Universal full voltage input
• Protection function: short circuit, overload, overvoltage
• Internal active power factor correction function, PF>0.9(full load)
• IP66 protection level
• UL1310 Class 2 power supply
• Natural air cooling
• Suitable for all kinds of LED lighting and LED electronic display
• 3 years warranty

Technical specifications

Input voltage 90Vac~264Vac
Input frequency 47Hz~63Hz
Input current 0.4A largest
Inrush current Maximum 20A (cold start)
Starting time Maximum 2s (rated input voltage)
Constant current accuracy Maximum ±5%
Pressure I/P-O/P: 3750Vac, I/P-FG: 1875Vac
Operating temperature -35°C~+70℃
The derating curve Output full load at 60°C,Derogate at 70°C to 80% load output
Storage temperature -40℃~+85℃
Protection function Short circuit, overload, over voltage
Overcurrent protection 95%- 105% fixed current limit, automatic recovery
Safety standards UL8750, UL1310 Class 2, EN61347-1, EN61347-2-13, UL1012; IP67
Electromagnetic compatibility standard EN55015, EN61000-3-2, 3,EN61000-4-2,3,4,5,6,8,11, EN61547
Standard output wire UL Rated,18-16#AWG

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it

Model in the list
