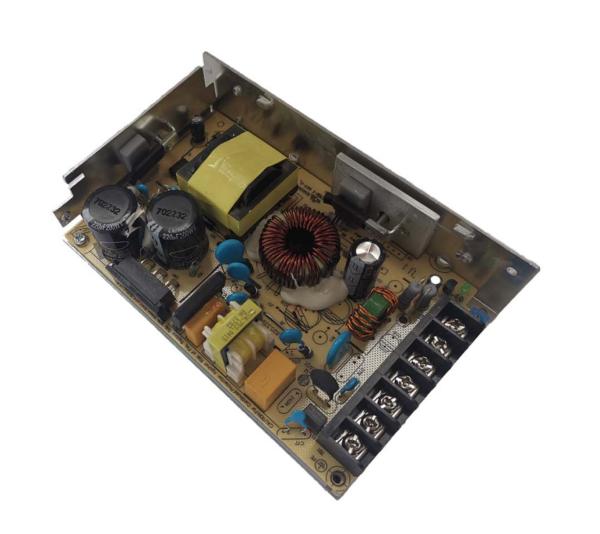

100W Single Output Industrial Power Supply

• Place of origin:,ChengduChina
• Modle Number:ESP-100c-24
• AC input selectable by switch
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in constant current limiting circuit
• High efficiency, low temperature rise, high cost performance
• LED indicator for power on
• 2 years warranty

Specifications

Input voltage 88VAC~132VAC, 180VAC~264VAC,255VDC~370VDC
Input frequency 47HZ~63Hz

Inrush current 50A @ 230VAC full load cold start

Hold up time >20ms @ 230VAC full load
Overload protection 120%~150% constant current limiting, auto-recovery
Over voltage protection 115%~145%

Operating temperature -20℃~70℃(refer to output derating curve)

Safety standard EN60950-1, GB4943- 2001

EMC standard EN61000-6-2
EN61000-4-2,3,4,5,6,8,11

EN55022 Class B

Withstand voltage I/P-O/P: 1 5kVAC, 1min

I/P-FG: 1.5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.41kg/pcs

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
