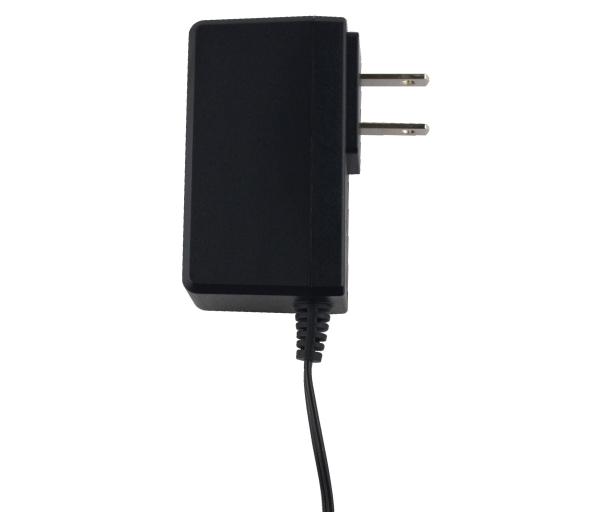

12W Wall-mount Switching Power Supply Adapter (Lateral)

Overview

Place of Origin:Chengdu,China

Model Number:GQ12

Appearance:L:70* W:27.5* H:39mm

AC Input Voltage:AC90V~264V 47HZ~63HZ

AC Input Current:0.4Amax,@100VAC/60HZ full load test

AC Input Surge Current:40A(RMS)maximum for AC 230V/50HZ full load test

Maximum Power:15.6w(24V/650mA

Input Voltage:AC90-264V50/60HZ

Output Load:0%~100%

Efficiency:Five or Six Level energy efficiency

Working Temp:0℃~45℃

Plug:Europe,America and China

Insulation Impedance:≥30MΩ@500VDC;60S

Product Features

Temperature rise and EMI performed well

High precision output OVP,OCP,SCP reliable protection

Effectively protect the power supply and user safety of terminal equipment

Specifications

Output line specification,conventional output wiringUL2468#,UL1185#,UL2464#,

DC plug specifications, output ripple voltage, efficiency, mean time between failures, lightning surge, static standard, withstand voltage and other attributes can be designed according to customer requirements.

OUR ADVANTAGES

Appearance Exquisite Practical

With a variety of pin input, black and white optional

Safety certification complete

High precision output OVP,OCP,SCP protection much safe and reliable

High quality&design

Standby power consumption is less than 75mW

its energy efficiency meets the energy efficiency requirements of the United States level 6 and the European Union CoC stage 2.

FAQ

Q: What is the main product of your company ?

A: AC Switching Power Adapters.

Q: What certificates do you have ?

A: Our products have completely been approved CE,ROHS,ISO9001,etc.

In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.

Q: Would you give me more details about the price of your products ?

A: We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.
