Current Type Lead Plug In 20MA Ultrasonic Proximity Switch
Current Type Lead Plug In 20MA Ultrasonic Proximity Switch
Specifications
Price :
Negotiation
MOQ :
Negotiate
item :
Ultrasonic Proximity Switch
feature :
High Pressure Resistance
Operating Voltage Ub :
9~30 VDC
Current draw max. :
80mA
Description

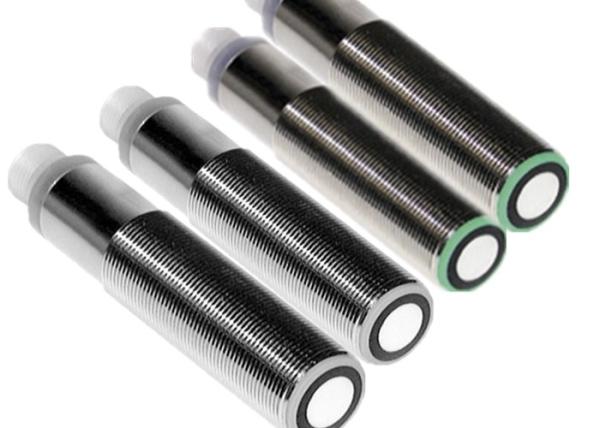

M18 Current Type Ultrasonic Sensor Proximity Switch Lead / Plug-in

Feature

Analog output 4 ~ 20MA

Adjustable measurement window

Optional sound cone width

Function input

Synchronization function

Sensor shutdown function

Temperature compensation

Minimal dead zone

Specification

General characteristics

Sensing distance:60 ... 1000 mm

Adjustment range:80 ... 1000 mm

Dead zone:0 ... 60 mm

Standard target board:100 mm x 100 mm

Transducer frequency:approx. 255 kHz

Response delay:approx. 125 ms

Operating Voltage:10 ... 30 V DC, ripple 10% SS

Output type:1 analog output 4 ... 20mA

Resolution:0.35 mm

Deviation of characteristic curve:± 1% of full-scale value

Repeat accuracy:± 0.1% of full-scale value

Load impedance:0 ... 300 Ohm

Temperature drift:± 1.5% of full-scale value

No-load current:≤ 45 mA

Current Type Lead Plug In 20MA Ultrasonic Proximity Switch Current Type Lead Plug In 20MA Ultrasonic Proximity Switch
