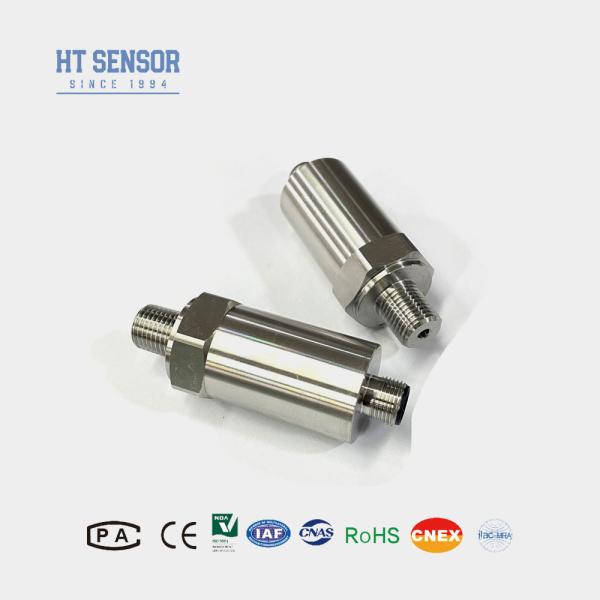

M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test
M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test
M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test
M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test
Specifications
Brand Name :
HT SENSOR
Model Number :
BP156-M
Certification :
ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BP156-M
Housing Material :
316LS.S. or 304S.S.
Pressure Type :
Gauge /Absolute/Sealed Pressure
Trademark :
HTsensor
Structure Type :
Diffused Silicon Pressure sensor
Measuring Medium :
Liquid and air
Pressure range :
0kpa~10kpa...20MPa
Output :
4-20mA /0.5-4.5Vdc
Customization :
OEM and ODM
Connector :
M12*1
Description

12 Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test

BP156-M Pressure Transmitter Sensor

Introduction of mini pressure transmitter sensor:


The BP156-M miniature pressure transmitter sensor utilizes a piezoresistive pressure sensor with an isolated stainless steel diaphragm as the signal sensing element. After undergoing automatic testing and laser fine tuning compensation, the amplifier circuit housed in stainless steel converts the sensor signal into a standard output signal. The transmitter is characterized by its stability, reliability, excellent flexibility, sensitivity, and diversity. These products find wide applications in industries such as petroleum, chemical industry, metallurgy, power station, hydrology for pressure measurement and control.


Product Features of mini pressure transmitter sensor:

1. Temperature range: -20 to 85ºC;
2. Wide operating temperature range of -40~125ºC;
3. High-performance pressure sensor;
4. Various output options available: 4~20mA/0.5~4.5V/1~5V/0~5V;
5. Compact dimensions with customizable sizing available;
6. M12 Connector included;
7. OEM, ODM, and customization services offered.

Applications of mini pressure transmitter sensor:

1. Pressure measurement of non-corrosive gases and liquids using 316L stainless steel.

2. Applied in the marine and aviation industries.

3. Utilized in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.

4. Employed in hydraulic and pneumatic control systems.

Performance Parameters of mini pressure transmitter sensor:
Measurement Range 0kPa ~ 10kPa…20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability& Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex ia IIC T6 Ga
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.05kg
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA

3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC

M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure TestM12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test

M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test



Selection Examples
M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test


Ordering tips

1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.

2. When placing an order, please note that explosion-proof products do not include a digital display.

3. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
4. Cable Without cable by default. Three materials are available if required. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.

M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test

Order Guide of mini pressure transmitter sensor
BP15X Analog Pressure Transmitter
Code Outline Construction
5 Packard plug 6 Sealed Direct Output Cable 1.5 meters
7 Mini Hirschmann Connector 8 Large Hirschmann Connector
Measurement Range 0kPa ~ 10kPa…5MPa
(0-X)Kpa
or MPa		 X: Indicates the Actual Measuring Range
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Others(¢50.4 Flange)
Code Electrical Connection
B1 Hirschmann
B2 PG7
B3 Cable Sealed Outlet 1.5 meters
B4 Other
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure

M12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure TestM12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure TestM12 Thread Electronic Connector Pressure Transmitter Sensor for Water and Oil Pressure Test
FAQ:

1. Q: What are the characteristics of your pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.


3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the needs of large-scale orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.


4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.


5. Q: How is the product priced? Are there any discounts?
A: Competitive prices, discounts for bulk orders or long-term partners.


6. Q: What is the warranty period of your product? What about after-sales service?
A: Our warranty period is 24 months after delivery, reply to your question within 24 hours after sale, remote guidance through the PC network at any time.
