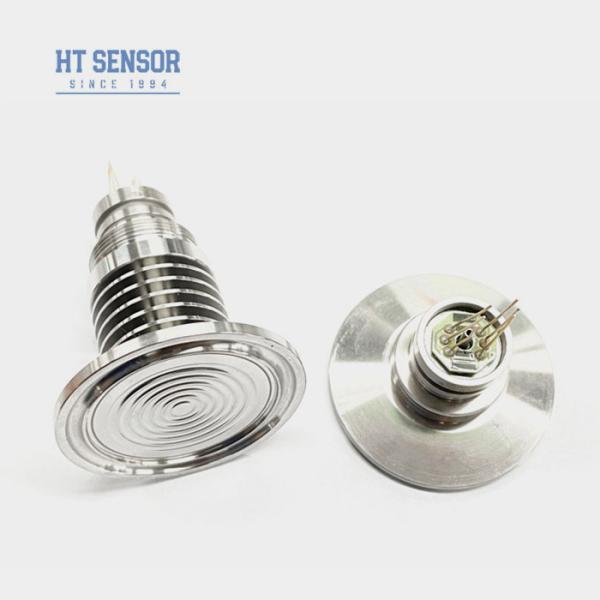

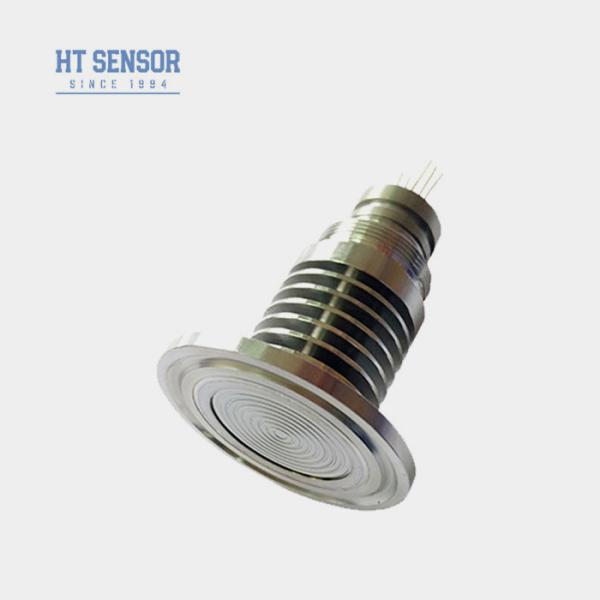

HT-IQT-B 50.4mm High Temperature Diffused Silicon Pressure Sensor for liquid test

HT-IQT-B Piezoresistive Silicon Pressure Sensor

Introduction of high temperature diffused silicon pressure sensor:

HT-IQT-B is a high temperature diffusion silicon pressure sensor, clamp pressure sensor using disposable silicone oil filling technology. The diaphragm is directly pressurized to prevent scaling, unsanitary and adhesive clogging. With heat sink structure, suitable for high temperature media measurement.Widely used in food, pharmaceutical, wine and other health industry and measuring medium may be contaminated.


Products of special construction and size can be customized. We has a mature batch production line, can complete the production task on time and quality.

50.4mm Diffused Silicon Pressure Sensor High Temperature Pressure Sensor For Liquid Test50.4mm Diffused Silicon Pressure Sensor High Temperature Pressure Sensor For Liquid Test

Applications of high temperature diffused silicon pressure sensor:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Food and beverage industry
  3. Industrial process control
  4. Pharmaceutical industry
Electrical performance of high temperature diffused silicon pressure sensor:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance : 2.5KΩ~6KΩ
  3. Output Impedance: 2.5KΩ~6KΩ
  4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters of high temperature diffused silicon pressure sensor:
Measurement Range Gauge(G) 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS
Typ Max Unit
NonLinearity ±0.15 ±0.3 %F.S
Repeatability 0.05 0.1 %F.S
Hysteresis 0.05 0.1 %F.S
Zero Offset Output 0±1 0±2 mV
Full Scale Output ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature -20~80 ºC
Storage Temperature -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 % F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~220g
The parameters are tested under the following conditions: 1.5mA @25°C
Outline Construction
Dimension
50.4mm Diffused Silicon Pressure Sensor High Temperature Pressure Sensor For Liquid Test



Electrical connection and compensation
50.4mm Diffused Silicon Pressure Sensor High Temperature Pressure Sensor For Liquid Test
Selection Examples
50.4mm Diffused Silicon Pressure Sensor High Temperature Pressure Sensor For Liquid Test
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
