HT BHZ93420-III SEREIES LIQUID LEVEL TRANSMITTER WITH HART AGREEMENT

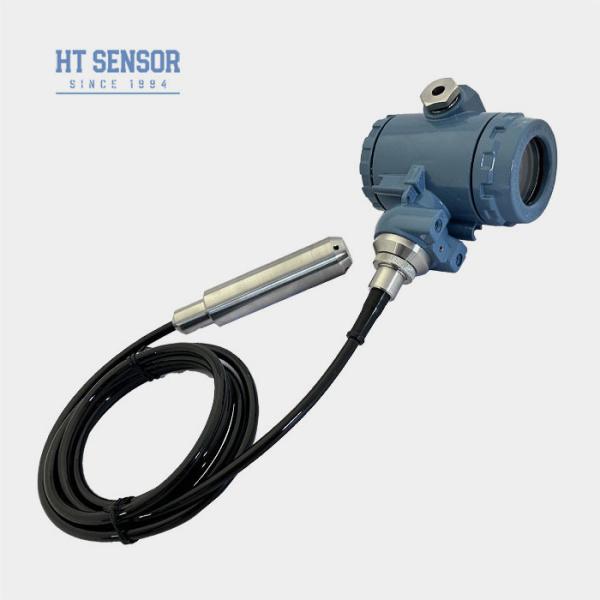

BHZ93420 III Liquid level Transmitter

Introduction:

BHZ93420-III insertion-type intelligent liquid level transmitter is equipped with a high-precision piezoresistive silicon pressure sensor as its signal measuring element. It measures the static pressure, which is directly proportional to the liquid level. The transmitter utilizes HART communication protocol to achieve digital signal transmission and two-way communication.

The LED/LCD display input liquid level transmitter should be coated with functions including liquid level value, alarm status, working status, unit switching and configuration parameters, so that users can intuitively understand and operate the liquid level transmitter

Product Features:

1. HART communication protocol output, with display capability
2. High accuracy and excellent stability
3. Explosion-proof rating : ExiaIICT6
4. High protection level, IP68
5. PE, PTFT, PU cables available
6. Multiple structures available, catering to various on-site requirements of customers

1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Diesel, fuel, and other oil tank level monitoring

Performance Parameters:

Outline Construction
2088
3051A
3051

Electrical Connection
	4-20mA (HART)	1	V+	Red
		2	V-	Yellow
		3	NC
		4	NC
	4-20mA (HART)	1	V+	Red
		2	V-	Yellow
		3	NC
		4	NC
	4-20mA (HART)	1	V+	Red
		2	V-	Yellow
		3	GND
		4	NC

Ordering tips:

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

GuideOrder:
