Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer
Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer
Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer
Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer
Specifications
Certification :
CE,RoHs,ISO9001
Place of Origin :
Baoji，China
Brand Name :
HT sensor
MOQ :
1
Price :
Negotiable
Packaging Details :
Standard Export Package
Delivery Time :
5-8 work days
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Model Number :
BP93420DIII
Model NO. :
BP93420D-III
Customized :
Customized
max range :
2MPa
output :
4-20mA
min range :
10kpa
Pressure Type :
Differential Pressure
Transport Package :
Standard Export Packing with Carton
Specification :
10kpa~2Mpa
HS Code :
9026201090
Type :
Differential Pressure Transmitter
Measuring Medium :
Gas or Liquid
Accuracy Grade :
0.25%, 0.5%,0.3%
Description
Cast Aluminum Housing & LCD Differential Pressure Sensor For Gas And Liquid

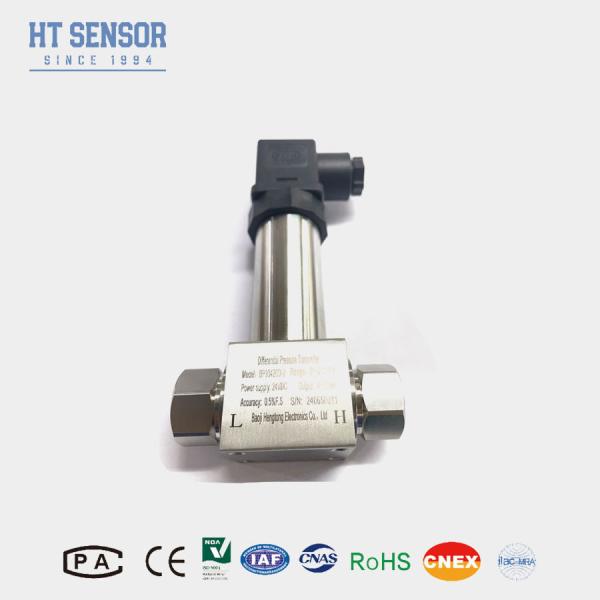

BP93420DIII differential pressure transmitter
Introduction of diffrential pressure transmitter:

BP93420DIII differential pressure transmitter employs a piezoresistive silicon sensor. As the measured medium's differential pressure affects the corrugated diaphragms on both ends of the sensor, the Wheatstone bridge on the sensor chip produces an output signal that shows excellent linearity with the differential pressure. This allows for precise measurement of the differential pressure. The transmitter is ideal for conducting differential pressure measurements in diverse gas and liquid applications, particularly in industries like petroleum, chemical for pipeline installations.
Product Features:

1.Stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening,
3. Diffused silicon pressure sensor is a common industrial control and measurement instrument, widely used in gas, liquid and other pressure measurement fields. It is basically composed of a pressure sensor element containing a diffused silicon wafer, and the pressure signal is converted by the piezoresistive effect shown by the diffused silicon wafer
Applications:

1.Suitable for measuring differential pressure of various gases or liquids in
pipelines of industries such as petroleum, chemical, power, and hydrology.
2.Applied in industrial on-site processes such as petroleum, chemical,
metallurgy, power generation, and hydrology
3.Pressure measurement for pipelines and furnace chambers
Performance Parameters:
Measurement Range 0-10KPa……~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static pressure The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25℃ ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa)
Zero Temperature Drift ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Span Temperature Drift ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Compensation Temperature 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃
Operating Temperature -30℃~80℃
Storage Temperature -40℃~100℃
Vibration 10g,55Hz ～ 2kHz
Housing Material 304 Stainless steel ,Cast aluminum
Diaphragm Material 316L Stainless steel
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~1.4kg

Output Signal Supply Voltage Output Type
4～20mA 15～30VDC Two/Three/Four Wire
4～20mA with Hart Two wire
RS485 Communication Protocol Four wire

Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer

Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer

Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer

Ordering tips:

1, temperature compensation, diffused silicon pressure sensor is semiconductor, semiconductor has strong temperature characteristics, no temperature compensation, measurement error may be relatively large.
2, the diffused silicon pressure sensor sensing diaphragm is only a few tens of meters thick, do not touch.
3, the power supply voltage to be stable, the sensor is actually a bridge, the power supply voltage fluctuation will cause the bridge output changes, affecting the measurement accuracy.
4, to be used within the rated voltage, overvoltage will lead to sensor damage.
5, the output end do not short circuit.

Order Guide

BP93420 Pressure Transmitter
Code Outline Construction
DIII Differential Pressure Transmitter
Measurement Range 0-10KPa……~2MPa
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4～20mADC S2 4～20mADC with Hart
S3 RS485
Code Pressure Connection
J1 M20×1.5 Male
J2 G1/2 Male
J3 G1/4 Male
J4 1/2 NPT Male
J5 Other
Code Pressure Type
D Differential Pressure
