0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
Specifications
Brand Name :
HT SENSOR
Model Number :
BPK-IIIN
Certification :
ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BPK-IIIN
Application :
Industrial
Structure :
Display Gauge
Transport Package :
Standard Export Packing with Carton
Origin :
Baoji, China
Warranty :
2years
Measuring Range :
Medium-pressure industrument
Switch :
2 switch
Input :
4-20mA/0-10VDC/pt100 and so on
Output :
0-20mA,4-20mA,0-5V and so on
Description

Industrial Digital Pressure Gauges with High Precision Measurement

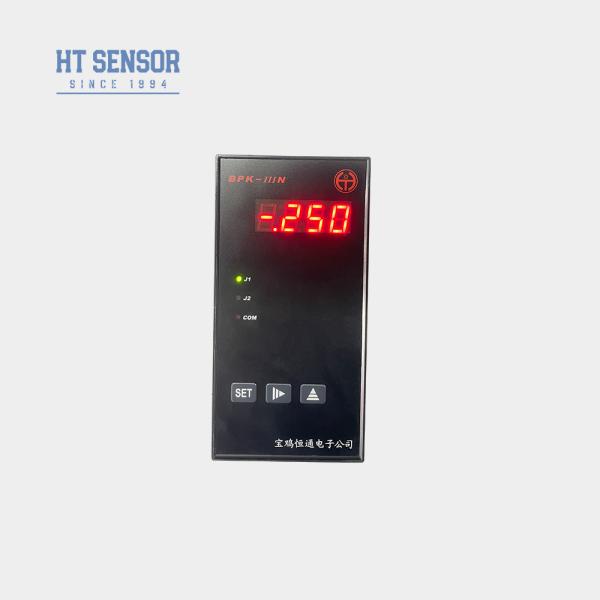

BPK-IIIN Pressure Gauge/Switch

Introduction:

The BPK-III series controllers are equipped with display, control, and transmission functions, and have been widely utilized in various automatic control applications. Their key features include:
1. Support for a wide range of input signals such as RTDS, thermocouples, or standard signals (refer to the table). The display range can be calibrated for nonlinear signals or set for linear signals.
2. Isolated transmission output with 12-bit resolution that allows for customizable scope settings.
3. Two relay outputs that support high/low, high/high-high, or low/low-low alarm action types.

0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge


Specification


1. Supply voltage:220VAC (±10%);
2. Ambient temperature:0~50ºC; relative humidity:≤85%Non corrosive gas;
3. Input signal , display scope and relevant parameters:(see Table1)

Table 1

Input signal code Input signal Display scope Resolution Precision Input impedance
00 T TC 0~400ºC 1ºC 0.2% 100K
01 R TC 0~1600ºC 1ºC 0.2% 100K
02 J TC 0~1200ºC 1ºC 0.2% 100K
03 WRe3-WRe25 TC 0~2300ºC 1ºC 0.2% 100K
04 B TC 350~1800ºC 1ºC 0.2% 100K
05 S TC 0~1600ºC 1ºC 0.2% 100K
06 K TC 0~1300ºC 1ºC 0.2% 100K
07 E TC 0~900ºC 1ºC 0.2% 100K
08 Pt100 RTD -200.~600.0ºC 0.1ºC 0.2% (0.2mA)
09 Cu50 RTD -50.0~150.0ºC 0.1ºC 0.2% (0.2mA)
10 0~375Ω remote pressure Low and high limit of scope can be set from -1999 to 9999 Display scope is continuous from -1999 to 9999 using 16bit A/D sample 0.2% (0.2mA)
11 0~75mVcurrent divider 0.1% 100K
12 0~30mV 0.1% 100K
13 0~5Vstandard signal 0.1% 100K
14 1~5Vstandard signal 0.1% 100K
15 0~10Vstandard signal 0.1% 100K
16 0~10 mA standard signal 0.1% 20Ω
17 0~20 mA standard signal 0.1% 20Ω
18 4~20 mA standard signal 0.1% 20Ω
4. Analog current output and related parameters: (see Table 2)
Table 2
Transmitting output signal Current output Transmitting scope Isolated voltage Max.
resolution		 Precision Load capacity Open- circuit voltage
00 4~20 mA Transmit data within scope to standard current signal 1500V 12bits 0.3% ≤500Ω 15V
01 0~20mA


This product is only manufactured into 4 ~ 20mA or 0 ~ 20mA output current signals. If the user needs the voltage output signal transmission output, it can be customized from the manufacturer or self-connected 250 or 500 ohm resistance for 1 ~ 5V or 0 ~ 5V, 0 ~ 10V voltage and resistance (note: the accuracy of the resistance directly affects the accuracy of the transmission output voltage).


5.Relay output contact capacity:(see Table 3)
Table3

250V/120V 120V/48V <48V Relay life
AC DC AC DC AC DC
>100000 times
Max. current (Resistive load) 3A 2A 4A 3A 5A 4A
Max .current (Inductive load) 0.3A 0.2A 0.4A 0.3A 0.5A 0.4A

6. External DC24V/30mA power. It can supply power to transmitter.
7. With automatic temperature compensation function for thermocouple sensor.
8. With disconnection protection function.

Model Outline dimension Panel output dimension(mm) Note
BPK-IIIS 160×80×80(Horizontal ) 152+0.8×76+0.7
BPK-IV 96×48×112(horizontal) 92+0.7×44+0.5
BPK-IIIN 80×160×80(vertical) 76+0.7×152+0.8
BPK-IIIN2 48×96×112(vertical) 44+0.5×92+0.7
BPK-IIIF1 96×96×112(square) 92+0.7×92+0.7
BPK-IIIF2 48×48×108(square) 44+0.5×44+0.5 With J2alarm lamp without J2 relay
BPK-IIIF3 72×72×112 67+0.7×67+0.7
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge

0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
company

0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge

0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge

Q&A

FAQ:

1. Q: What are the features of your pressure sensor transmitters?

A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.

2. Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.

3. Q: What is your production capacity?

A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.

4. Q: What's the typical delivery period?

A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.

5. Q: How are the products priced? Any discounts?

A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.

6. Q: What is the warranty of your products? And after-sales service?

A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
