Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Specifications
Brand Name :
HT SENSOR
Model Number :
BP93420-IIIA
Certification :
ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BP93420-IIIA
Power :
12-32VDC
Output :
4-20mA can with HART or RS485
Weight :
0.8kg
Pressure Type :
Gauge , Absolute , Sealed Pressure
HS Code :
9026201090
Structure Type :
Industrial Pressure Sensor Transmitter
Measuring Medium :
Liquid,gas ,Beverage glue and so on
Accuracy Grade :
0.5%F.S 0.25%F.S
Pressure range :
-100kpa...0kpa ~10kpa...60MPa
Description

Applications of Industrial Pressure Sensor with Digital Display Pressure Transmitter

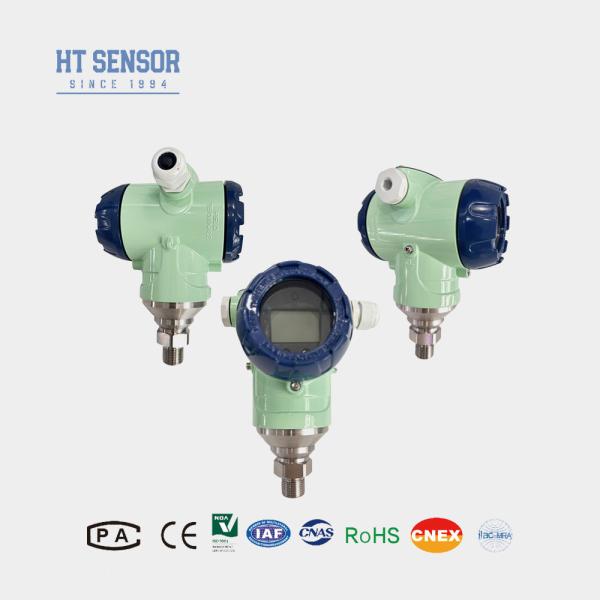

BP93420-IIIA Industrial Pressure Sensor

Introduction of Industrial Pressure Sensor transducer:

The BP93420-IIIA Industrial pressure sensor transmitter comprises a pressure sensor module and an intelligent circuit board. The smart sensor component includes a silicon pressure sensor, measuring diaphragm detection circuit, temperature sensor, and temperature compensation circuit. The intelligent circuit board consists of a microcomputer controller and peripheral circuits to accomplish the conversion of pressure signals into electrical signals. It is utilized in industrial settings for measuring the pressure of liquids, gases, or vapors.

Product Features of Industrial Pressure Sensor transducer:


1. Wide measuring range, diverse pressure interface forms, and IP65 protection level.
2. Various output signal forms, adjustable and displayable.
3. Adjustable zero point and full scale.
4. Core utilizes high-precision and high-performance diffused silicon piezoresistive pressure sensors.

Applications of Industrial Pressure Sensor transducer:


1. Suitable for measuring the pressure of non-corrosive gases and liquids in 316L stainless steel.
2. Petroleum, chemical, metallurgy, power, and hydrology.
3. Pressure measurement and control in harsh outdoor industrial environments.
4. Used in hydraulic and pneumatic control systems.

Performance Parameters of Industrial Pressure Sensor transducer
Measurement Range -100kPa…0kPa ~10kPa…60MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ≤±0.1%FS
Hysteresis ≤±0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material Aluminum Alloy
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
Weight ~0.8kg

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure DisplayIndustrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display
Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display

Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display

Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display


Industrial Pressure Sensor Transmitter BP93420-IIIA for Accurate Pressure Display

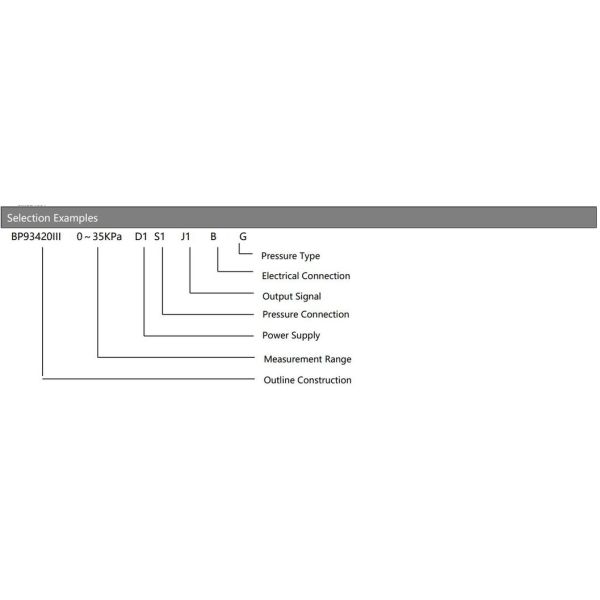

Order Guide
BP93420XX Pressure Transmitter
Code Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC

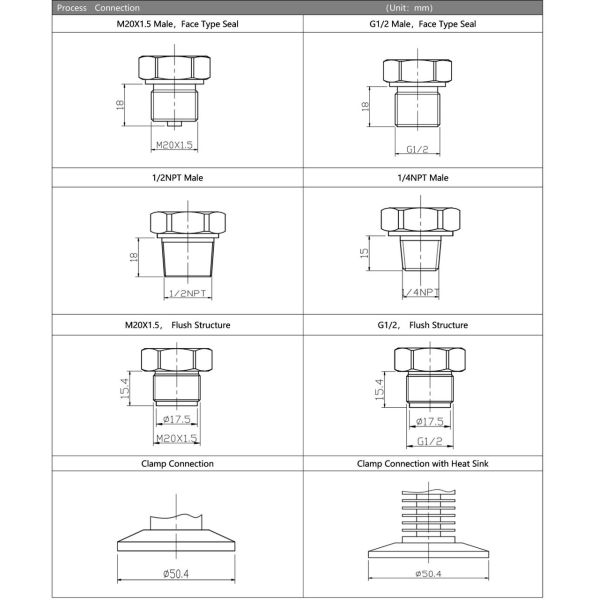

Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other

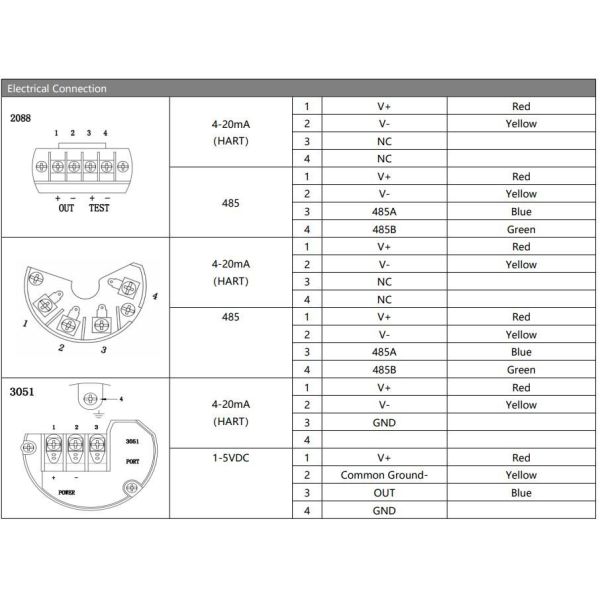

Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure


FAQ:

1. Q: What are the characteristics of your pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.


3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the needs of large-scale orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.


4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.

5.Q:Shipment&packing

A:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.

6.Q:Contact US

A:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
