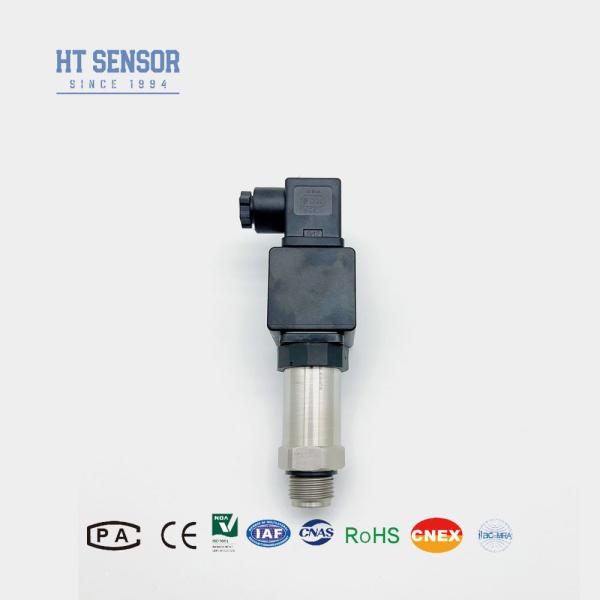

BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
Specifications
Brand Name :
HT SENSOR
Model Number :
BPHT24-IX
Certification :
ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BPHT24-IX
Range :
0-10kpa~20Mpa
Output :
4-20mA /0-10VDC
Weight :
0.2kg
Housing Material :
304S.S or 316L
Pressure Type :
G /A /S pressure
Trademark :
HTsensor
Measuring Medium :
Liquid,gas
IP Rating :
IP65
Customization :
Available
Description

BPHT24-IX Industrial Pressure Sensor for High Sanitary Standards and Easy Cleaning Transmitter


BPHT24-IX Pressure Transmitter

Introduction of flush diaphragm Industrial pressure sensor transmitter:

BPHT24 - IX flat Flush diaphragm industrial pressure sensor transmitter senses the pressure signal and uses an integrated circuit to convert it into a standard output signal for processing. This pressure transmitter is primarily utilized in environments with high sanitary standards, such as the food and medical industries, to ensure that the performance of the medium is not compromised by contamination during the pressure measurement process. It can be paired with an LCD or LED field display for real-time monitoring of the field's pressure situation.


Product Features of flush diaphragm industrial pressure sensor transmitter:

1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean,display.

stries.

Performance Parameters of flush diaphragm industrial pressure sensor transmitter:
Measurement Range 0~10Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex ia IIC T6 Ga
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.2kg

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire

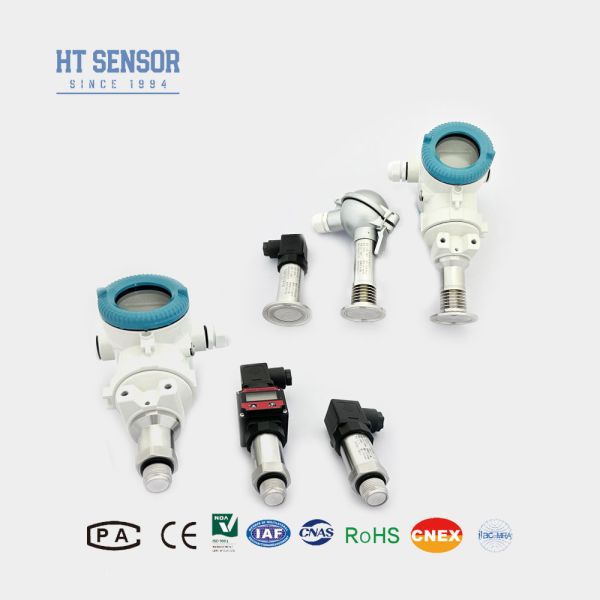

BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter

BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter

BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter
BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter

BPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning TransmitterBPHT24-IX Industrial Pressure Sensor For High Sanitary Standards And Easy Cleaning Transmitter

Q&A

Q1:Areyou manufactrade company?

A1:We are manufactrader with more than 29 years of experience.

Q2:Customized Product

A2:We provide OEM and Custom-Design services.

Q3:Quality Quarantee

A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.

Q4:Shipment&packing

A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.

Q5:Contact US

A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
