BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs
BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs
BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs
BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs
Specifications
Brand Name :
HT SENSOR
Model Number :
BP93420-IX
Certification :
ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BP93420-IX
Power :
15-32VDC
Ooutput :
4-20mA /0-10VDC with LCD /LED display
Housing Material :
304L Stainess Steel
Trademark :
HTsensor
Origin :
Baoji, China
Structure Type :
Diffused Silicon Pressure Transmitter
Measuring Medium :
Liquid
Pressure range :
-100kpa...0kpa ~10kpa...100MPa
IP Rating :
IP65
Description

BP93420IX Pressure Transmitter Sensor for Reduced Maintenance and Replacement Costs

BP93420-IX Pressure Transmitter sensor

Introduction of pressure transmitter sensor:


BP93420IX pressure transmitter sensor using HT series silicon pressure sensor oil-filled core as a signal measuring element. It is a comprehensive pressure transmitter product that integrates pressure measurement, display and output. The diffused silicon pressure sensor is a versatile instrument known for its accuracy and reliability. Its advanced technology ensures accurate pressure measurement in a wide range of applications. Known for its long-term stability, the sensor performs well in demanding industrial processes, reducing maintenance and replacement costs.

Product Features of pressure transmitter sensor:


1. Wide measurement range,stainless steel structure.
2. Various pressure interface options.
3. High precision,display available.

Performance Parameters of pressure transmitter sensor
Measurement Range -100kPa…0kPa ~10kPa…100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability&Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material Cast aluminum
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex ia IIC T6 Ga
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.25kg


BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs

BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs

BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs

BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs



BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs


BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs

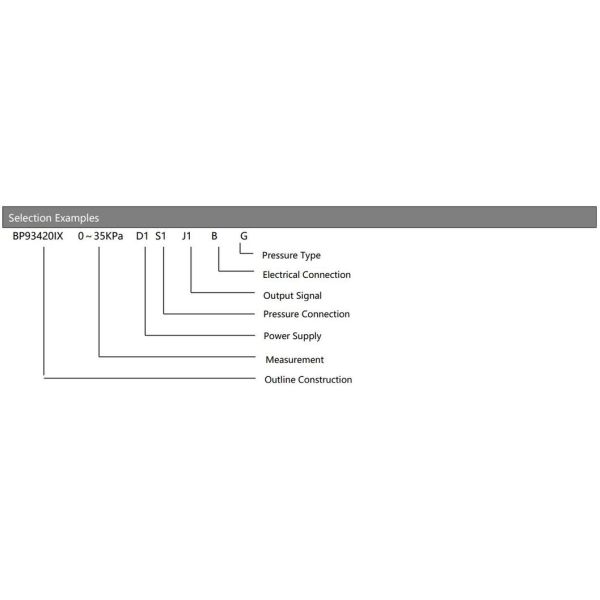

Ordering tips

1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The default cable length is no cable, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
6. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
BP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement CostsBP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement CostsBP93420IX Pressure Transmitter Sensor For Reduced Maintenance And Replacement Costs


FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.


3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.


4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.


5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.


6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
