BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
Specifications
Brand Name :
HT SENSOR
Model Number :
BP156TC
Certification :
CE,RoHs,ISO9001
Place of Origin :
Baoji，China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Package
Model NO. :
BP156TC
Sensor :
Ceramic sensor
Power :
5VDC / 24Vdc
Output :
0.5-4.5V/ 4-20mA and so on
Housing Material :
Stainless steel
Origin :
China
Accuracy Grade :
0.5%
Pressure range :
0kpa~500kpa...10MPa
Thread :
G1/4, M8, or OEM
Customization :
OEM and ODM
Description

BP156TC Pressure Transmitter Sensor for Liquid Pressure Measurementor

BP156TC Pressure Transmitter SENSOR

Introduction of Pressure transmitter sensor:

BP156TC pressure transmitter sensor is a wide range and high output, especially suitable for manufacturing high performance industrial pressure transmitters and pressure measurement in harsh environments. High quality BP156TC pressure sensor with linear voltage output. Commonly used as oil pressure sensor or fuel pressure sensor. Connected with automotive instrumentation and data loggers, it is widely used in the automotive industry.

Product Features of Pressure transmitter sensor:


1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design
3. High precision, all stainless steel structure

Applications of Pressure transmitter sensor:


BP156TC is solution for below applications: Pressure measurement of gas, vapor or liquid in various areas; Liquid level, volume or mass measurement; Integrated in a variety of user-defined solutions; Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

Performance Parameters of Pressure transmitter sensor
Measurement Range 0kPa ~ 500kPa…5MPa
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
Weight ~0.25kg
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA

3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC

BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement
Selection Examples
BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

BP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

Order Guide
BP15X Analog Pressure Transmitter

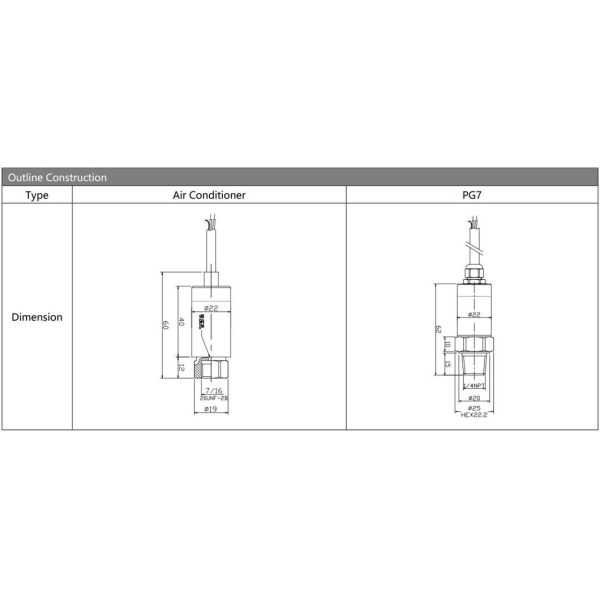

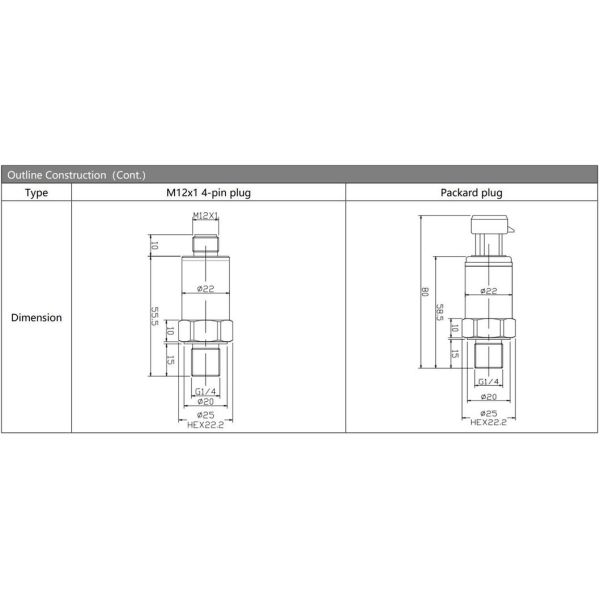

Code Outline Construction
5 Packard plug 6 Sealed Direct Output Cable 1.5 meters
7 Mini Hirschmann Connector 8 Large Hirschmann Connector
Measurement Range 0kPa ~ 10kPa…5MPa
(0-X)Kpa
or MPa		 X: Indicates the Actual Measuring Range
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Others(¢50.4 Flange)

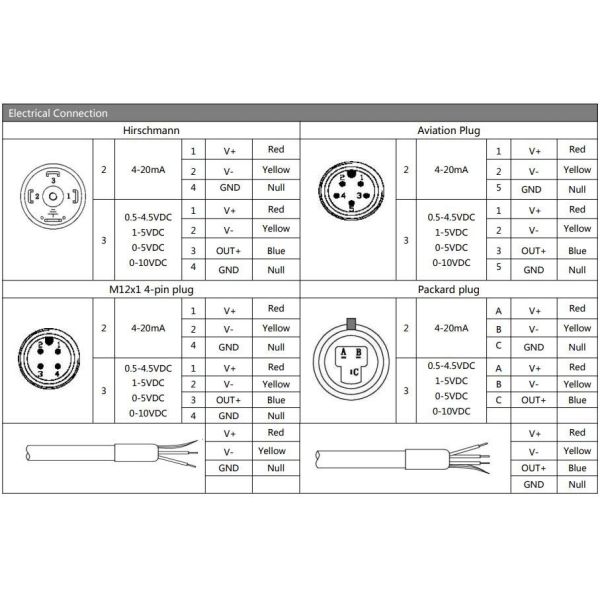

Code Electrical Connection
B1 Hirschmann
B2 PG7
B3 Cable Sealed Outlet 1.5 meters
B4 Other
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure



BP156TC Pressure Transmitter Sensor For Liquid Pressure MeasurementBP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

BP156TC Pressure Transmitter Sensor For Liquid Pressure MeasurementBP156TC Pressure Transmitter Sensor For Liquid Pressure MeasurementBP156TC Pressure Transmitter Sensor For Liquid Pressure Measurement

FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.


3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.


4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.


5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.


6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
