1kg Automatic Robotic Arm
1kg Automatic Robotic Arm
1kg Automatic Robotic Arm
1kg Automatic Robotic Arm
Specifications
Brand Name :
Hulk Robot
Model Number :
HK5404
Certification :
CE/ISO9001/IPMS
Place of Origin :
Suzhou China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
21 work days
Packaging Details :
Fill around the cardboard box with foam
Product name :
1kg Payload Mini Robot For Automatic Assembly
Degree of freedom :
3dof,4 dof,5dof
Type :
Industrial robot
Payload range :
0-1kg
Repeat position accuracy :
0.05mm
Application :
grabbing, sorting,assembling, gluing, screwing, casting
Voltage rating :
220V
Installation :
ground or desktop
Description

Industrial Palletizer Intelligent Human 1kg Payload Mini Robot For Automatic Assembly

Product description:

This is an industrial palletizing robot for automated assembly, with high intelligence. This is a small load palletizing robot with a maximum load of 1kg, which is suitable for palletizing and packaging of small objects. Such as auto parts industry, 3C industry, lenses, food and other small and low-weight daily necessities. This robot can replace traditional large robots. It occupies a small area, can work on a desktop, and has no control cabinet. The repeatability position accuracy is 0.05mm. It’s body can be rotated 320 degrees with a 540mm arm span. It is cheap and is a nice choice for your automation reform.

Feature:

1. Easy to learn and operate.

2. Control and drive integration.

3. It occupies a small area.

4. Wide range of applications.

5. Simple programming logic

6. Wireless tablet control.

Robot parameter

Model HK5404
Working radius 540mm
Number of axis 4 Axis
Installation Ground or desktop
N.W./G.W. 13kg / 20kg
Repeat Positioning Accuracy ±0.05mm
Maximum Payload

1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V
External communication WIFI/Ethernet
Application Small parts picking, loading, sorting,assembly,
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5

Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s

Application fields

1. Our products have been used by German companies

2. Car parts fields

3. 3C industral

4. Loading and unloading

5. Vocational education

6. Small and low-weight daily necessities

7. Lens product processing

8. Food package processing

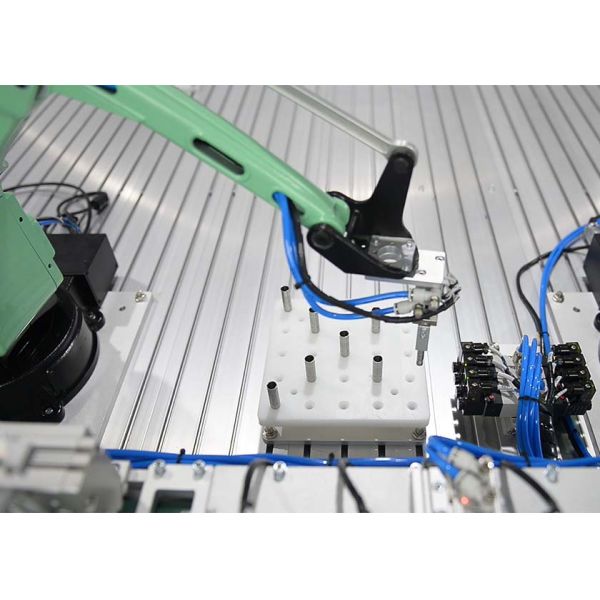

Detailed images

1kg Automatic Robotic Arm
