Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
Specifications
Brand Name :
Hulk Robot
Model Number :
HK5404
Certification :
CE/ISO9001/IPMS
Place of Origin :
Suzhou China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
21 work days
Packaging Details :
Fill around the cardboard box with foam
Product name :
small payload 4 axis robot
Number of axis :
4 axis
Type :
Industrial robot
Payload range :
1kg
Repeat position accuracy :
0.05mm
Application :
grabbing, sorting,assembling, gluing, screwing, casting
Voltage rating :
220V
Installation :
Fall to the ground
Description

Industrial Assembly Automatic Small Payload 4 Axis Robot Machine

Product description:

Small-load industrial robots are widely used, flexible, and cost-effective. Many auto parts suppliers and processing industry manufacturers have benefited from them.
1. Small footprint and flexible installation,without control cabinet, it can be flexibly installed on the ground or desktop.
2. Tablet wireless control, simple logic, can learn programming in 15 minutes.

3. Good collaboration.
4. Control and drive integration.
5. Wide range of applications ,such as small parts picking, loading, sorting,assembly, gluing, casting, polishing and so on.

Feature:

1. Easy to learn and operate.

2. Control and drive integration.

3. The repeatable positioning accuracy is less than±0.05mm.

4. Wide range of applications.

5. Cost-effective

6. Wireless tablet control.

Robot parameter

Model HK5404
Working radius 540mm
Number of axis 4 Axis
Installation Floor/Table
N.W. 13kg
Repeat Positioning Accuracy ±0.05mm
Payload

1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V
External communication WIFI/Ethernet
Application Small parts picking, loading, sorting,assembly,
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5

Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s

Application fields

1. Our products have been used by German companies

2. Auto parts fields

3. 3C area

4. Loading and unloading

5. Vocational education

6. Visual position detection

7. Lens processing

8. Food processing

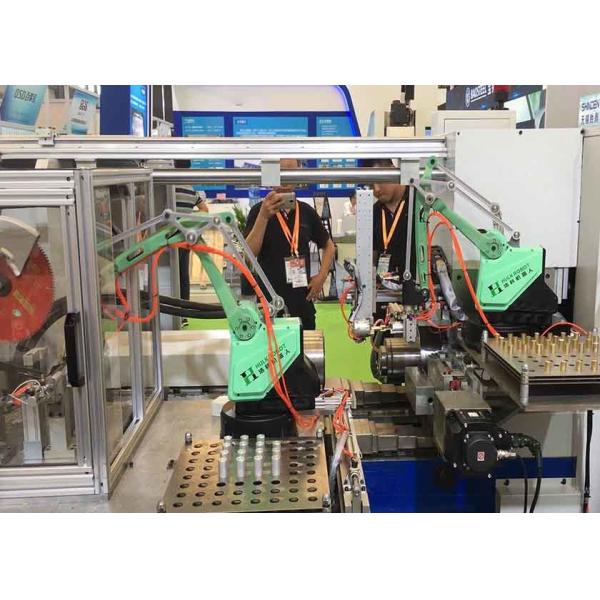

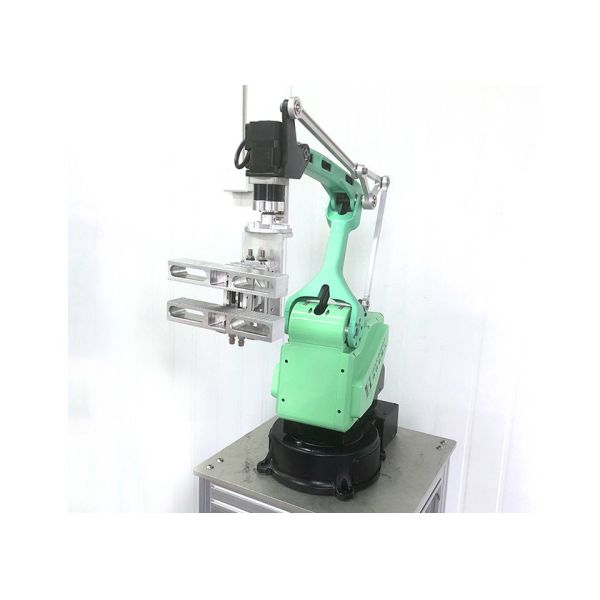

Detailed images

Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm

Industrial Assembly 4 Axis Robot Machine Automatic Robotic Arm
