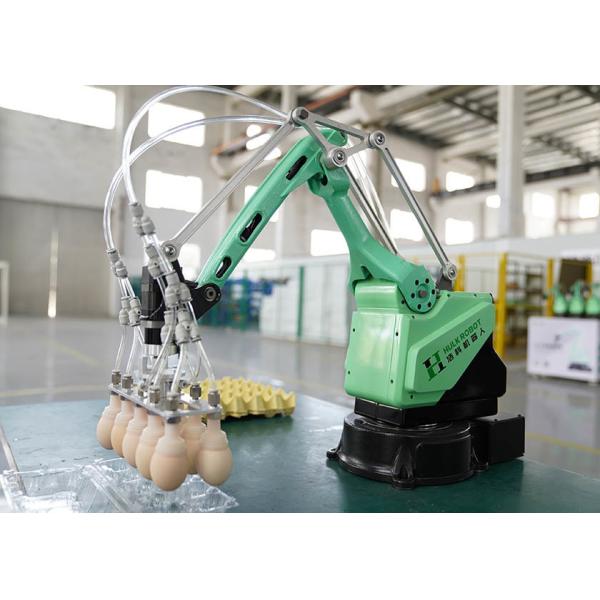

IPMS HK5404 1kg 4 Dof Automatic Robotic Arm For grabbing
IPMS HK5404 1kg 4 Dof Automatic Robotic Arm For grabbing
IPMS HK5404 1kg 4 Dof Automatic Robotic Arm For grabbing
IPMS HK5404 1kg 4 Dof Automatic Robotic Arm For grabbing
Specifications
Brand Name :
Hulk Robot
Model Number :
HK5404
Certification :
CE/ISO9001/IPMS
Place of Origin :
Suzhou China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200pcs per month
Delivery Time :
21 work days
Packaging Details :
Fill around the cardboard box with foam
Product name :
4 dof payload 1kg mini robot arm
Degree of freedom :
4
Type :
Industrial robot
Payload range :
0-1kg
Repeat position accuracy :
0.05mm
Application :
grabbing, sorting,assembling, gluing, screwing, casting
Voltage rating :
220V
Installation :
ground or desktop
Description

Collaborative automatic industrial 4 dof payload 1kg mini robot arm

Product description:

This is a collaborative mini robot,which can work together with people.it have 4 dof, payload 1kg,and repetitive position 0.05mm.Due to the mini robot arm cover small ground,no control cabinet,install at desktop expediently,so it is widely used in the automatic production process of small items.Such as auto parts field,3C area,and other small objects manufacturing.compared with traditional labor-intensive production line,automatic production line have some advantage of speeding up production beat,saving labor cost,improving production efficiency,improve products quality,and so on.

Feature:

1. Easy to learn and operate.

2. Control and drive integration.

3. The repeatable positioning accuracy is ±0.05mm.

4. Wide range of applications.

5. Simple programming logic

6. Wireless tablet control.

Robot parameter

Model HK5404
Working radius 540mm
Number of axis 4 Axis
Installation Ground or desktop
N.W./G.W. 13kg / 20kg
Repeat Positioning Accuracy ±0.05mm
Payload

1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V
External communication WIFI/Ethernet
Application Small parts picking, loading, sorting,assembly,
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5

Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s

Application fields

1. Our products have been used by German companies

2. Car parts fields

3. 3C industral

4. Loading and unloading

5. Vocational education

6. Visual position detection

7. Lens product processing

8. Food package processing

Detailed images

IPMS HK5404 1kg 4 Dof Automatic Robotic Arm For grabbing
