4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm
4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm
4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm
4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm
Specifications
Brand Name :
Hulk Robot
Model Number :
HK5404
Certification :
CE/ISO9001/IPMS
Place of Origin :
Suzhou China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
18 days
Packaging Details :
Fill around the cardboard box with foam
Product name :
4 axis robotic arm,5 axis robotic arm,
Capacity :
0.01~1kg
DOF :
4
Application :
Picking,Loading,handling,Assembly,Unloading,Feeding
Package :
680 * 640 * 380mm (L*W*H)
Net weight :
13 kg/28.67 lb
Single Gross weight :
20 kg/44.01 lb
Color :
Customized
I/O :
5, can be extended by 16 I/O
Repeat position accuracy :
±0.05mm
Description

4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm


Details

This 4 Degree-Of-Freedom 1 Kg Capacity Fully Automated Revolute Jointed Robotic Arm has four joints to imitate a human upper arm namely joint 1, 2, 3 and 4 that rotate around x, y, and z axes, respectively. It is configured in a slightly different way than the more common six-axis robot model. The robot payload is 1KG, which focuses on industrial & educational applications. And it also can be easily integrated with camera, AI and cloud service to realize more applications. such as vision guided pick and place, flexible feeding system, handle complex parts.

The joints move four arm links to get the required action of the wrist that will be assembled with the hand in future applications. The investigation of components and mechanism was implemented to ensure that they matched in terms of the dimensions and capability to lift the load with high precision.

Features

small and exquisite in body and structure
4/5 DOF structural layout,more flexiable

1 kg payload

No independent control cabinet
Free Android control software

Programming language: C++, C#
Repeat positioning accuracy 0.05mm,more accurate.

Easy programming,no complicated languages.

Application

Rapid handling of small parts and products

Feeding

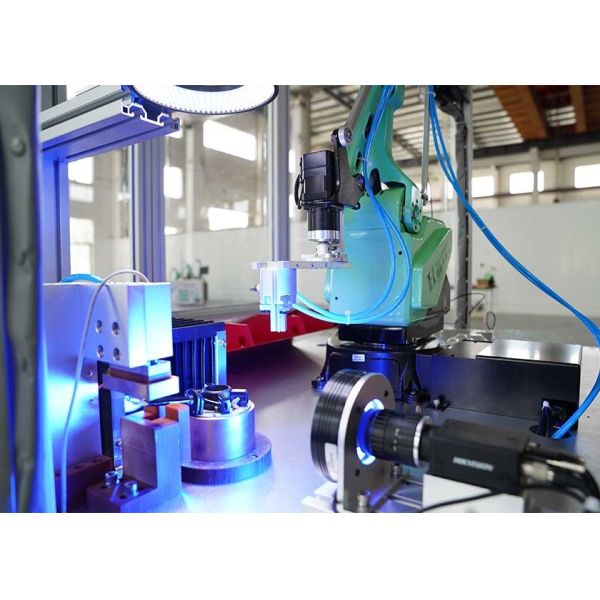

Assembling Picking with camera

STEM Education

Load & Unload

School laboratory

lock screw

Nuts handing

Laptop case grab

Auto parts

3C electronics

Mechanical Machining

Visual inspection

Biological medicine

Unmanned retail

Food processing

Vocational education

Lens processing


Technical parameter

Model HK5404
Maximum working radius 540mm
Number of axis 4
Installation Earth / desktop
N.W/ G.W 13kg/20kg
Repeat Positioning Accuracy ±0.05mm
Maximum Load 1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V 50 Hz
External communication WIFI/Ethernet
Application Industry, Academic, Teaching, Vocational education
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5,can be expanded by 16



Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s

Shipping List

Name Quantity
Robot arm 1
Power adapter 1
Emergency stop 1
Power cable 1




Detailed images
4 DOF Fully Automated Revolute Jointed Multi Axis Robot Arm
