Falk R Type Polyurethane Coupling PU Coupling With Green Color
Falk R Type Polyurethane Coupling PU Coupling With Green Color
Falk R Type Polyurethane Coupling PU Coupling With Green Color
Falk R Type Polyurethane Coupling PU Coupling With Green Color
Specifications
Brand Name :
3Arubber
Model Number :
3A2006
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100pieces
Price :
neogation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
Packed in cartons
Type :
Falk R type
Color :
Green
Surface :
Smooth
Tensile Strength :
50Mpa
Hardness :
80-98shore a
Elongation :
650%
Density :
1.25g/cm3
Size :
Standard Size
Description

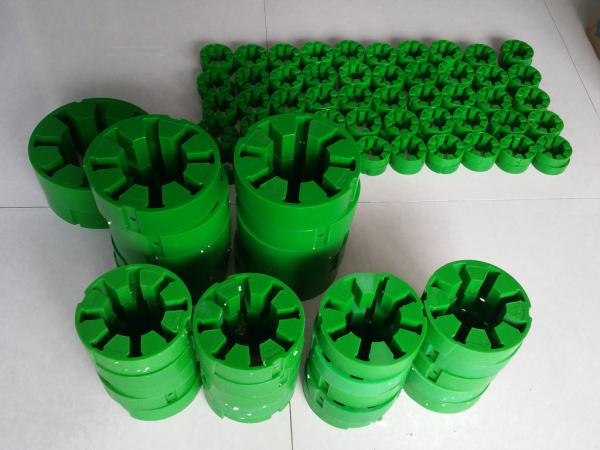

Falk R Type Polyurethane Coupling, PU Coupling with Green Color

made by injection with high quality polyester. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of Falk R couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.

Specifications:

material polyester
color green
surface smooth
tensile strength 55Mpa
hardness 97Shore A
elongation 650%
density 1.25g/cm3
elasticity impact >25%
>25% 155KN/m
akron abrasion loss <0.05cm3/1.61km
compression set (22h*70oC) <10%
working temperature 100oC


Size		 OD(mm) ID(mm) Thickness(mm) Gear Qty Color Hardness
Falk 10R 80 49 23 8 Green 97Shore A
Falk 20R 114 61 31 8 Green 97Shore A
Falk 30R 131 74 35 8 Green 97Shore A
Falk 40R 164 82 47 8 Green 97Shore A
Falk 50R 210 106 60 8 Green 97Shore A
Falk 60R 250 140 65 8 Green 97Shore A
Falk 70R 293 164 72 8 Green 97Shore A


Other coupling as following,
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
